Lifecycle Status

ACTIVE (Last Updated: 3 days ago)

Factory Lead Time

12 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

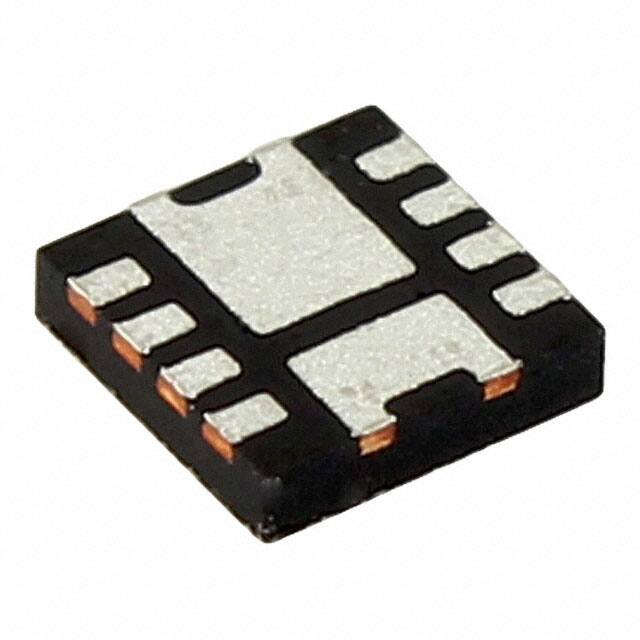

Package / Case

8-PowerWDFN

Number of Pins

8

Weight

192mg

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

13A 26A

Number of Elements

2

Turn Off Delay Time

34 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

PowerTrench®

Published

2010

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Tin (Sn)

Max Power Dissipation

2W

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Power - Max

800mW 900mW

FET Type

2 N-Channel (Dual) Asymmetrical

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

7m Ω @ 12A, 4.5V

Vgs(th) (Max) @ Id

2.2V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

1075pF @ 13V

Gate Charge (Qg) (Max) @ Vgs

8nC @ 4.5V

Rise Time

3ns

Fall Time (Typ)

3 ns

Continuous Drain Current (ID)

88A

JEDEC-95 Code

MO-240BA

Gate to Source Voltage (Vgs)

12V

Drain Current-Max (Abs) (ID)

13A

Drain-source On Resistance-Max

0.007Ohm

Drain to Source Breakdown Voltage

25V

FET Technology

METAL-OXIDE SEMICONDUCTOR

FET Feature

Logic Level Gate

Height

725μm

Length

3.3mm

Width

3.3mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
