Lifecycle Status

ACTIVE (Last Updated: 6 days ago)

Factory Lead Time

4 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

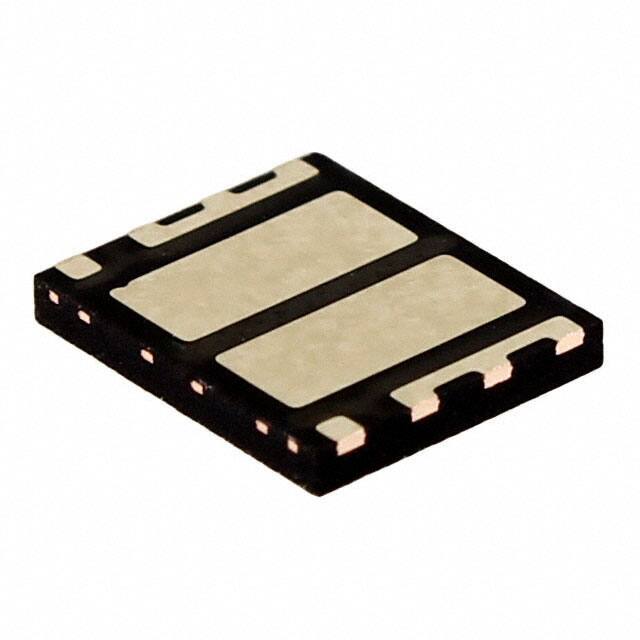

Package / Case

8-PowerWDFN

Number of Pins

8

Weight

250mg

Transistor Element Material

SILICON

Number of Elements

2

Turn Off Delay Time

17.4 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

PowerTrench®

Published

2017

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

Max Power Dissipation

2.2W

JESD-30 Code

R-PDSO-N4

Element Configuration

Dual

Operating Mode

ENHANCEMENT MODE

Power Dissipation

59W

Case Connection

DRAIN

Turn On Delay Time

10.6 ns

FET Type

2 N-Channel (Dual)

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

13m Ω @ 10A, 10V

Vgs(th) (Max) @ Id

4V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

1800pF @ 50V

Gate Charge (Qg) (Max) @ Vgs

27nC @ 10V

Rise Time

4.6ns

Drain to Source Voltage (Vdss)

100V

Fall Time (Typ)

4 ns

Continuous Drain Current (ID)

10A

Gate to Source Voltage (Vgs)

20V

Drain Current-Max (Abs) (ID)

40A

Drain-source On Resistance-Max

0.013Ohm

Drain to Source Breakdown Voltage

100V

FET Technology

METAL-OXIDE SEMICONDUCTOR

FET Feature

Logic Level Gate

Height

750μm

Length

5mm

Width

6mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
