Mounting Type

Through Hole

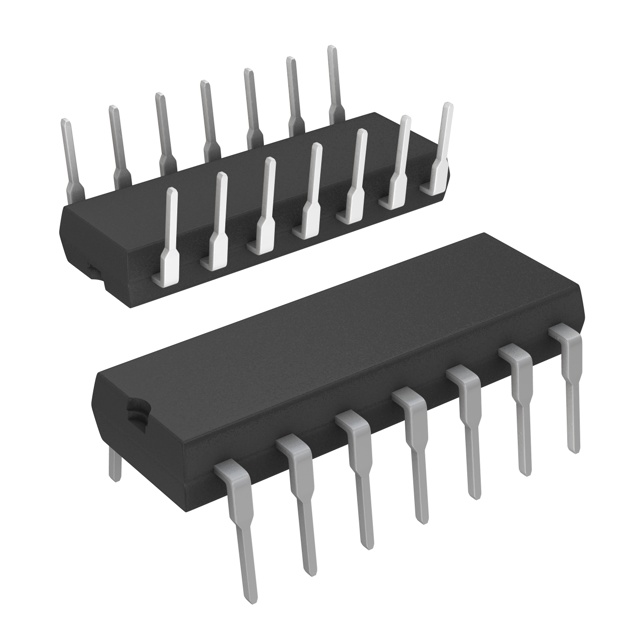

Package / Case

14-CDIP (0.300, 7.62mm)

Surface Mount

NO

Operating Temperature

-40°C~85°C

Published

2013

JESD-609 Code

e0

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

ECCN Code

EAR99

Type

Transceiver

Terminal Finish

Tin/Lead (Sn/Pb)

Voltage - Supply

4.5V~5.5V

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

240

Number of Functions

1

Supply Voltage

10V

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

20

Pin Count

14

JESD-30 Code

R-GDIP-T14

Qualification Status

Not Qualified

Operating Supply Voltage

5V

Power Supplies

+-10V

Logic Function

Receiver

Data Rate

116Kbps

Output Characteristics

TOTEM-POLE

Differential Output

NO

Output Polarity

TRUE

Protocol

RS232

Input Characteristics

SCHMITT TRIGGER

Number of Drivers/Receivers

2/2

Driver Number of Bits

2

Receiver Number of Bits

2

Duplex

Full

Receiver Hysteresis

600mV

Negative Supply Voltage-Nom

-10V

Out Swing-Min

10 V

Number of Transmitters

2

Length

19.43mm

RoHS Status

ROHS3 Compliant
