Factory Lead Time

24 Weeks

Contact Plating

Gold

Mount

Surface Mount

Mounting Type

Surface Mount

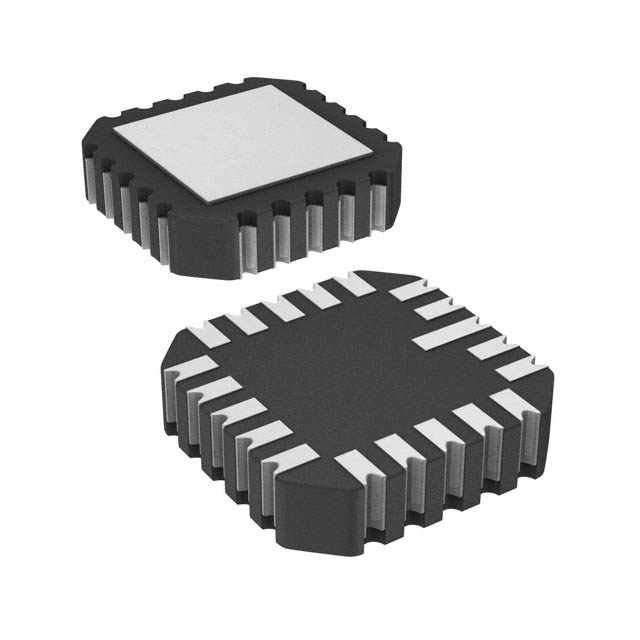

Package / Case

20-LCC

Number of Pins

20

Number of I/Os

8

Usage Level

Military grade

Operating Temperature

-55°C~125°C

Packaging

Tube

Published

2000

JESD-609 Code

e0

Pbfree Code

no

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

20

ECCN Code

EAR99

Type

Transceiver

Terminal Finish

Tin/Lead (Sn/Pb)

Terminal Position

QUAD

Peak Reflow Temperature (Cel)

240

Number of Functions

1

Supply Voltage

5V

Time@Peak Reflow Temperature-Max (s)

20

Pin Count

20

Operating Supply Voltage

5V

Power Supplies

5V

Nominal Supply Current

10mA

Propagation Delay

1 μs

Logic Function

Receiver, Transceiver

Data Rate

120Kbps

Output Characteristics

TOTEM-POLE

Differential Output

NO

Output Polarity

INVERTED

Protocol

RS232

Input Characteristics

SCHMITT TRIGGER

Number of Drivers/Receivers

2/2

Receiver Number of Bits

2

Receiver Hysteresis

500mV

Number of Drivers

2

Number of Transceivers

1

Radiation Hardening

No

RoHS Status

Non-RoHS Compliant
