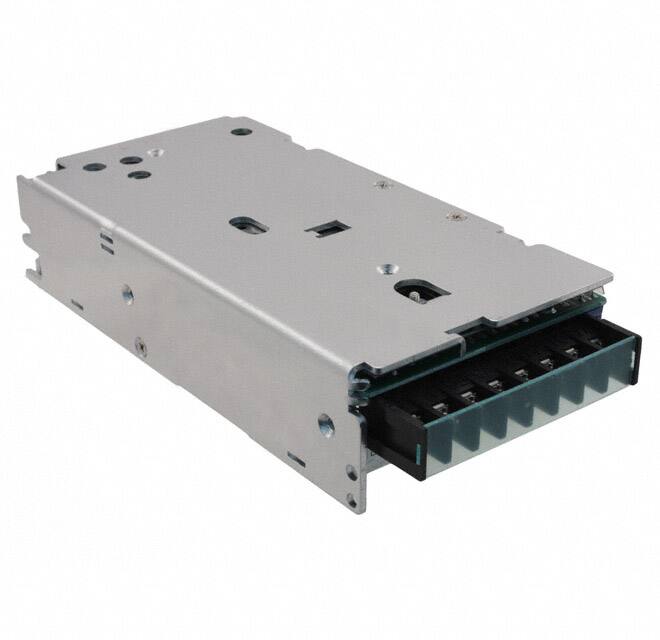

Lifecycle Status

PRODUCTION (Last Updated: 2 months ago)

Factory Lead Time

14 Weeks

Mount

Chassis Mount, Panel

Mounting Type

Chassis Mount

Weight

1.999889kg

Usage Level

Commercial grade

Operating Temperature

-10°C~65°C With Derating

Series

JWT (75W)

Published

1999

Size / Dimension

7.40Lx3.62W x 1.65 H 188.0mmx91.9mmx41.9mm

Part Status

Not For New Designs

Moisture Sensitivity Level (MSL)

Not Applicable

Number of Terminations

7

ECCN Code

EAR99

Type

Enclosed

Applications

ITE (Commercial)

Power Rating

75W

Max Power Dissipation

75W

Terminal Position

UNSPECIFIED

Terminal Form

UNSPECIFIED

Number of Functions

1

Depth

91.95mm

JESD-30 Code

R-XXFM-X7

Number of Outputs

3

Approval Agency

CE

Efficiency

72%

Voltage - Isolation

3kV

Output Voltage

5V

Max Output Current

3.2A

Input Voltage-Nom

100V

Trim/Adjustable Output

NO

Current - Output (Max)

8A 3.2A 500mA

Output Current

8A

Output Power

75W

Protections

OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE

Voltage - Output 2

15V

Current - Output 1

8A

Voltage - Output 3

-15V

Max Output Power

75W

Input Current

2A

Current - Output 2

3.2A

Current - Output 3

500mA

Ripple Voltage (Main Out)

0.04242Vrms

Features

Adjustable Output, DC Input Capable, PFC, Universal Input

Height

41.91mm

Length

188mm

Width

92mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
