Mounting Type

Through Hole

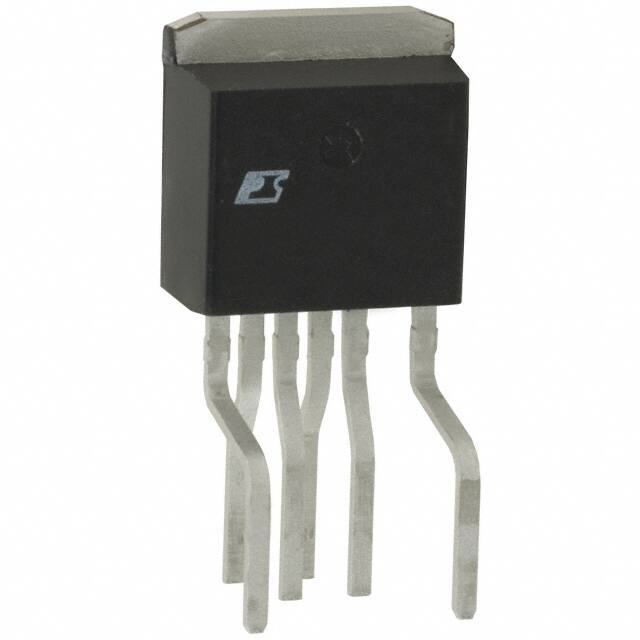

Package / Case

TO-262-7 (Formed Leads), 6 Leads

Surface Mount

NO

Operating Temperature

-40°C~150°C TJ

Packaging

Bulk

Series

TOPSwitch®-GX

Published

2005

JESD-609 Code

e0

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Additional Feature

REQUIRES AN AC SUPPLY OF 85 TO 265 V

HTS Code

8542.39.00.01

Max Power Dissipation

290W

Terminal Position

ZIG-ZAG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

1.27mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

3

JESD-30 Code

R-PZIP-T6

Qualification Status

Not Qualified

Analog IC - Other Type

SWITCHING REGULATOR

Control Features

Frequency Control

Topology

Flyback

Control Mode

VOLTAGE-MODE

Output Current-Max

10.08A

Frequency - Switching

66kHz~132kHz

Control Technique

PULSE WIDTH MODULATION

Switcher Configuration

SINGLE

Internal Switch(s)

Yes

Fault Protection

Current Limiting, Over Temperature, Over Voltage

Duty Cycle

66.8%

Output Isolation

Isolated

Voltage - Breakdown

700V

Length

10.29mm

Width

4.435mm

RoHS Status

Non-RoHS Compliant
