Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Factory Lead Time

4 Weeks

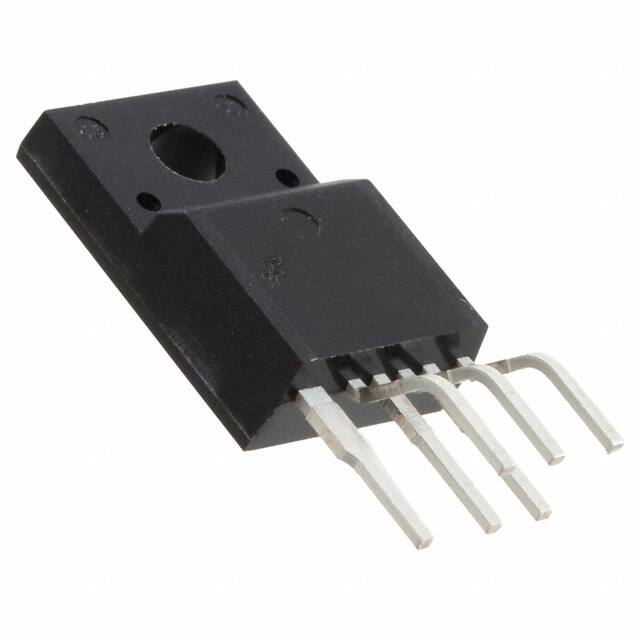

Package / Case

TO-220-6 Full Pack, Formed Leads

Mount

Through Hole

Mounting Type

Through Hole

Number of Pins

6

Weight

2.752g

Turn Off Delay Time

20 ns

Packaging

Tube

Series

FPS™

Published

2016

Operating Temperature

-40°C~125°C TJ

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Resistance

4Ohm

Terminal Finish

Tin (Sn)

Power Rating

35W

Max Power Dissipation

50W

Terminal Position

ZIG-ZAG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

FSL136

Number of Outputs

1

Qualification Status

Not Qualified

Voltage

265V

Analog IC - Other Type

SWITCHING CONTROLLER

Nominal Supply Current

400μA

Current

3A

Power Dissipation

50W

Voltage - Supply (Vcc/Vdd)

7.5V~26V

Max Supply Current

500μA

Current - Output

1.89A

Turn On Delay Time

12 ns

Topology

Flyback

Control Mode

CURRENT-MODE

Frequency - Switching

67kHz

Max Output Power

35W

Internal Switch(s)

Yes

Fault Protection

Current Limiting, Over Load, Over Temperature, Over Voltage

Max Duty Cycle

73 %

Duty Cycle

67%

Output Isolation

Isolated

Voltage - Start Up

12V

Min Breakdown Voltage

650V

Width

4.8mm

Height

16.07mm

Length

10.16mm

RoHS Status

ROHS3 Compliant
