Factory Lead Time

4 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

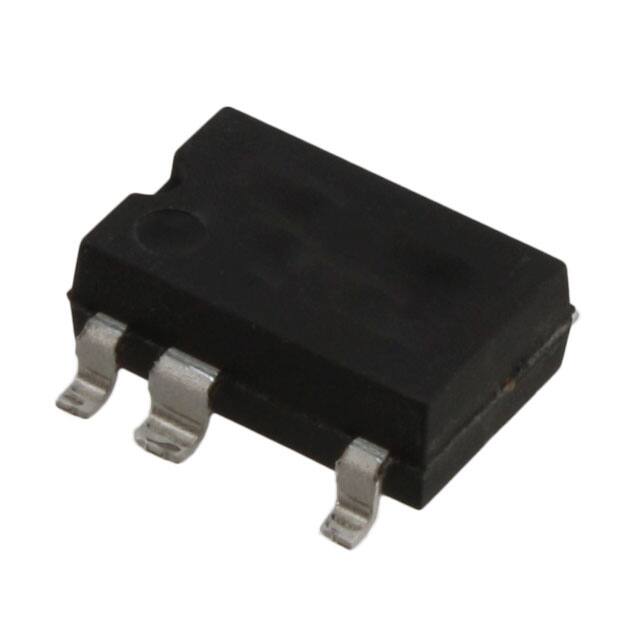

Package / Case

8-SMD (7 Leads), Gull Wing

Number of Pins

7

Operating Temperature

-40°C~150°C TJ

Packaging

Tube

Series

LinkSwitch®-TN

Published

2014

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

4 (72 Hours)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Additional Feature

REQUIRES AN AC SUPPLY OF 85 TO 256V

Power Rating

80mW

Max Power Dissipation

12mW

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

40

Pin Count

8

JESD-30 Code

R-PDSO-G8

Number of Outputs

1

Output Voltage

12V

Output Type

Adjustable

Analog IC - Other Type

SWITCHING REGULATOR

Operating Supply Current

220μA

Output Current

280mA

Topology

Buck, Buck-Boost, Flyback

Min Input Voltage

85V

Frequency - Switching

66kHz

Max Input Voltage

265V

Control Technique

PULSE WIDTH MODULATION

Internal Switch(s)

Yes

Fault Protection

Current Limiting, Open Loop, Over Temperature, Short Circuit

Max Duty Cycle

72 %

Max Supply Voltage (AC)

265V

Duty Cycle

69%

Output Isolation

Non-Isolated

Voltage - Breakdown

700V

Min Input Voltage (AC)

85V

Max Input Voltage (AC)

265V

Min Supply Voltage (AC)

85V

Height

3.68mm

Length

9.83mm

Width

6.6mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
