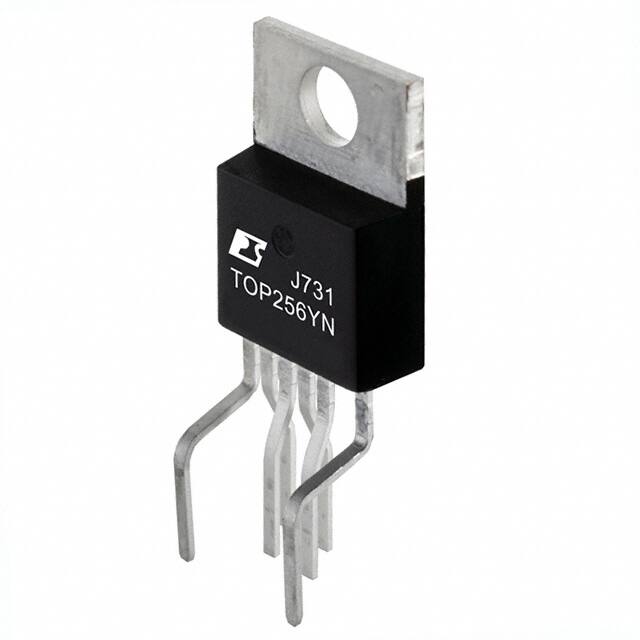

Factory Lead Time

4 Weeks

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

TO-220-7 (Formed Leads), 6 Leads

Number of Pins

6

Operating Temperature

-40°C~150°C TJ

Packaging

Tube

Series

TOPSwitch®-HX

Published

2005

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

HTS Code

8542.39.00.01

Max Power Dissipation

119W

Terminal Position

ZIG-ZAG

Number of Functions

1

Terminal Pitch

1.27mm

Pin Count

3

Output Voltage

700V

Max Supply Voltage

9V

Min Supply Voltage

-300mV

Analog IC - Other Type

SWITCHING REGULATOR

Current - Output

4.08A

Output Power

119W

Topology

Flyback

Control Mode

VOLTAGE-MODE

Frequency - Switching

66kHz 132kHz

Control Technique

PULSE WIDTH MODULATION

Switcher Configuration

SINGLE

Internal Switch(s)

Yes

Fault Protection

Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle

78 %

Output Isolation

Isolated

Voltage - Breakdown

700V

Radiation Hardening

No

RoHS Status

RoHS Compliant
