Mounting Type

Surface Mount

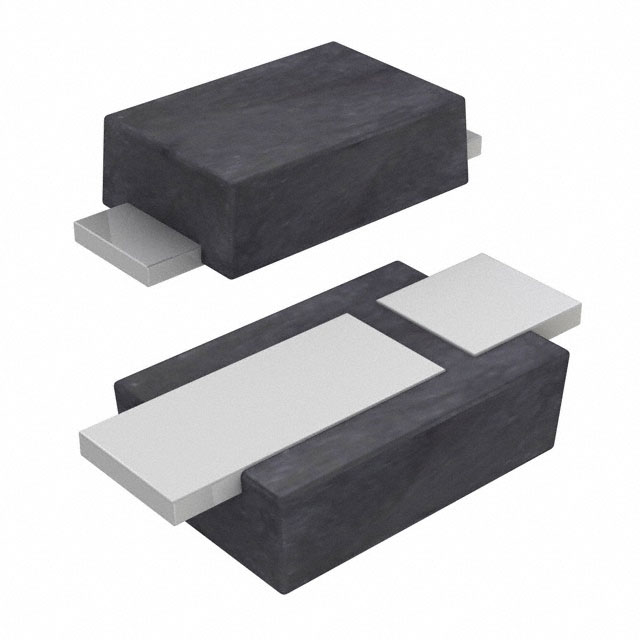

Package / Case

SOD-123H

Surface Mount

YES

Diode Element Material

SILICON

Number of Elements

1

Operating Temperature (Max.)

150°C

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Applications

GENERAL PURPOSE

HTS Code

8541.10.00.80

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

10

JESD-30 Code

R-PDSO-F2

Configuration

SINGLE

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

500μA @ 50V

Voltage - Forward (Vf) (Max) @ If

700mV @ 3A

Operating Temperature - Junction

-55°C~150°C

Output Current-Max

3A

Voltage - DC Reverse (Vr) (Max)

50V

Current - Average Rectified (Io)

3A

Number of Phases

1

Rep Pk Reverse Voltage-Max

50V

Non-rep Pk Forward Current-Max

65A

Reverse Current-Max

500μA

RoHS Status

RoHS Compliant
