Mount

Surface Mount

Mounting Type

Surface Mount

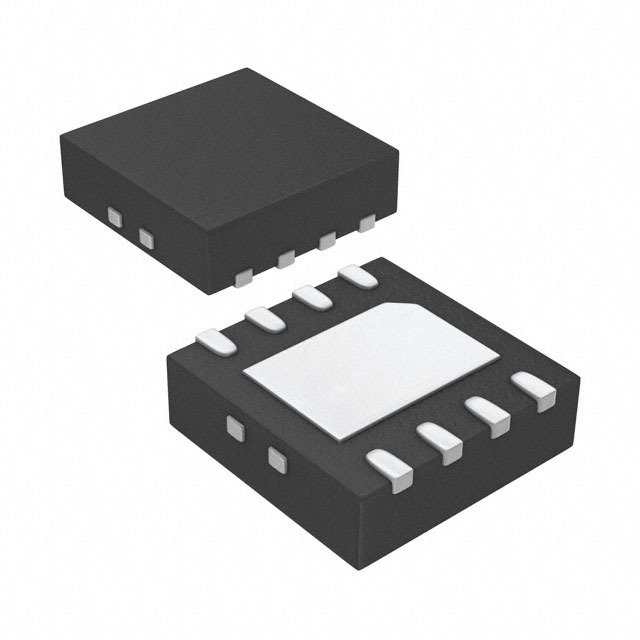

Package / Case

8-PowerVDFN

Number of Pins

8

Diode Element Material

SILICON

Number of Elements

1

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

2

ECCN Code

EAR99

Max Operating Temperature

150°C

Min Operating Temperature

-40°C

Applications

GENERAL PURPOSE

Terminal Position

DUAL

Base Part Number

SPV1001

Pin Count

8

JESD-30 Code

R-PDSO-N2

Element Configuration

Single

Diode Type

Standard

Current - Reverse Leakage @ Vr

1μA @ 30V

Voltage - Forward (Vf) (Max) @ If

850mV @ 5A

Case Connection

CATHODE

Forward Current

12.5A

Operating Temperature - Junction

-45°C~150°C

Max Surge Current

250A

Forward Voltage

850mV

Max Reverse Voltage (DC)

30V

Average Rectified Current

12.5A

Number of Phases

1

Peak Reverse Current

1μA

Max Repetitive Reverse Voltage (Vrrm)

30V

Peak Non-Repetitive Surge Current

250A

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
