Mount

Surface Mount

Mounting Type

Surface Mount

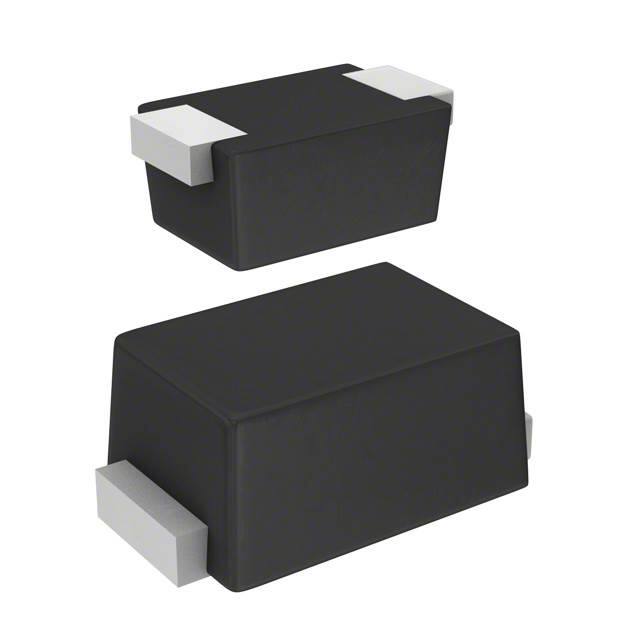

Package / Case

SOD-923

Number of Pins

2

Diode Element Material

SILICON

Number of Elements

1

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Max Operating Temperature

150°C

Min Operating Temperature

-65°C

HTS Code

8541.10.00.70

Terminal Position

DUAL

Terminal Form

FLAT

Base Part Number

BAT30

Pin Count

2

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

5μA @ 30V

Voltage - Forward (Vf) (Max) @ If

530mV @ 300mA

Forward Current

300mA

Operating Temperature - Junction

150°C Max

Output Current-Max

0.3A

Current - Average Rectified (Io)

300mA DC

Forward Voltage

580mV

Max Reverse Voltage (DC)

30V

Average Rectified Current

300mA

Peak Reverse Current

5μA

Max Repetitive Reverse Voltage (Vrrm)

30V

Capacitance @ Vr, F

22pF @ 0V 1MHz

Peak Non-Repetitive Surge Current

1A

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
