Mounting Type

Through Hole

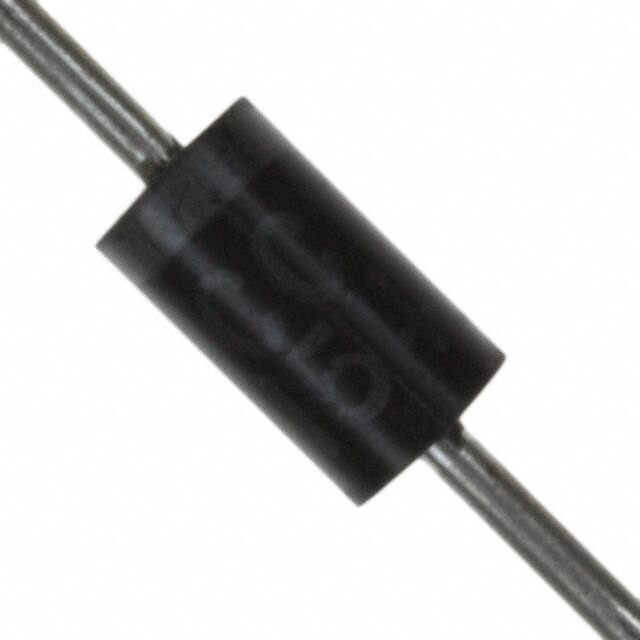

Package / Case

DO-201AD, Axial

Surface Mount

NO

Diode Element Material

SILICON

Number of Elements

1

Operating Temperature (Max.)

150°C

Packaging

Tape & Reel (TR)

Published

1996

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Applications

EFFICIENCY

Additional Feature

LOW LEAKAGE CURRENT

HTS Code

8541.10.00.80

Terminal Form

WIRE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

MUR4100

Pin Count

2

JESD-30 Code

O-XALF-W2

Qualification Status

Not Qualified

Configuration

SINGLE

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

10μA @ 1000V

Voltage - Forward (Vf) (Max) @ If

1.85V @ 4A

Case Connection

ISOLATED

Operating Temperature - Junction

-55°C~150°C

Output Current-Max

4A

Voltage - DC Reverse (Vr) (Max)

1000V

Current - Average Rectified (Io)

4A

Number of Phases

1

Reverse Recovery Time

75ns

Rep Pk Reverse Voltage-Max

1000V

Non-rep Pk Forward Current-Max

150A

RoHS Status

RoHS Compliant
