Mount

Surface Mount

Mounting Type

Surface Mount

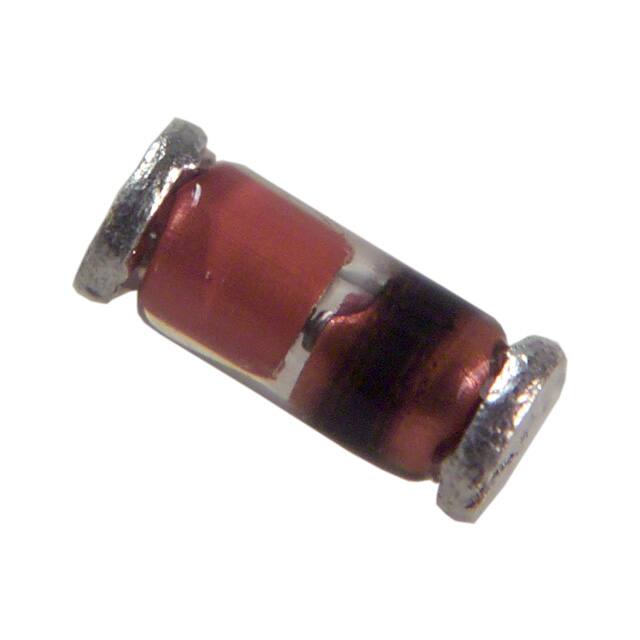

Package / Case

DO-213AA

Number of Pins

2

Diode Element Material

SILICON

Number of Elements

1

Power Dissipation (Max)

0.4W

Packaging

Tape & Reel (TR)

Published

2006

JESD-609 Code

e2

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Terminal Finish

Tin/Silver (Sn/Ag)

Max Operating Temperature

125°C

Min Operating Temperature

-55°C

HTS Code

8541.10.00.70

Terminal Position

END

Terminal Form

WRAP AROUND

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

40

Pin Count

2

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

5μA @ 30V

Voltage - Forward (Vf) (Max) @ If

600mV @ 200mA

Case Connection

ISOLATED

Forward Current

350mA

Operating Temperature - Junction

-55°C~125°C

Output Current-Max

0.35A

Current - Average Rectified (Io)

350mA DC

Forward Voltage

600mV

Max Reverse Voltage (DC)

40V

Average Rectified Current

350mA

Reverse Recovery Time

10 ns

Peak Reverse Current

5μA

Max Repetitive Reverse Voltage (Vrrm)

40V

Capacitance @ Vr, F

50pF @ 0V 1MHz

Peak Non-Repetitive Surge Current

7.5A

Max Forward Surge Current (Ifsm)

7.5A

Height

1.6mm

Length

3.7mm

Width

1.6mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
