Mount

Through Hole

Mounting Type

Through Hole

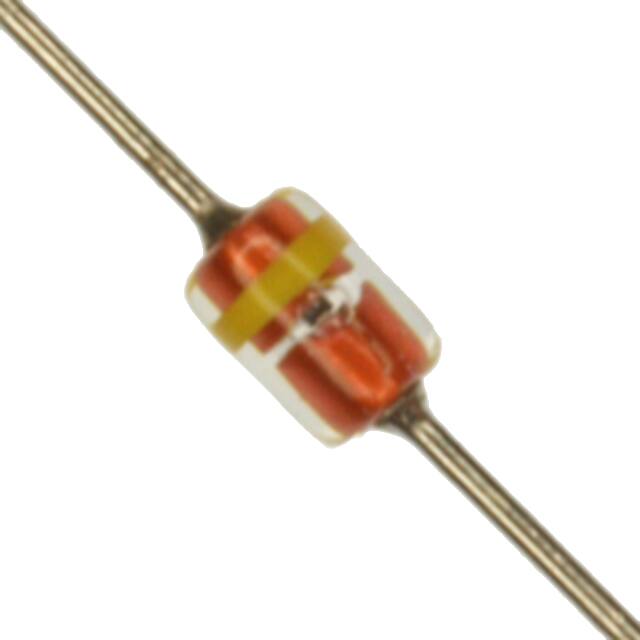

Package / Case

DO-204AG, DO-34, Axial

Number of Pins

2

Diode Element Material

SILICON

Operating Temperature (Max)

125°C

Operating Temperature (Min)

-40°C

Number of Elements

1

Published

2006

Packaging

Tape & Reel (TR)

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

Termination

Axial

ECCN Code

EAR99

Terminal Finish

TIN SILVER COPPER

Additional Feature

HIGH RELIABILITY

HTS Code

8541.10.00.70

Capacitance

6pF

Voltage - Rated DC

40V

Terminal Form

WIRE

Peak Reflow Temperature (Cel)

260

Current Rating

100mA

Time@Peak Reflow Temperature-Max (s)

10

Polarity

Standard

Element Configuration

Single

Speed

Small Signal =< 200mA (Io), Any Speed

Diode Type

Schottky

Current - Reverse Leakage @ Vr

100μA @ 40V

Voltage - Forward (Vf) (Max) @ If

550mV @ 100mA

Current - Output

100mA

Case Connection

ISOLATED

Forward Current

100mA

Max Reverse Leakage Current

100μA

Operating Temperature - Junction

125°C Max

Max Surge Current

1A

Forward Voltage

550mV

Max Reverse Voltage (DC)

40V

Average Rectified Current

100mA

Peak Reverse Current

100μA

Max Repetitive Reverse Voltage (Vrrm)

40V

Capacitance @ Vr, F

6pF @ 10V 1MHz

Peak Non-Repetitive Surge Current

1A

Max Forward Surge Current (Ifsm)

1A

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
