Lifecycle Status

PRODUCTION (Last Updated: 6 months ago)

Factory Lead Time

10 Weeks

Mount

Chassis, Stud

Mounting Type

Chassis, Stud Mount

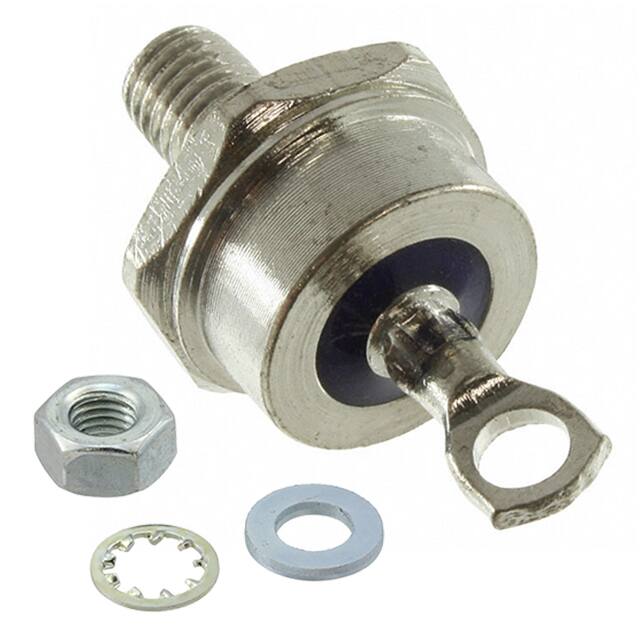

Package / Case

DO-203AB, DO-5, Stud

Number of Pins

2

Diode Element Material

SILICON

Number of Elements

1

Packaging

Bulk

Published

2010

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

1

ECCN Code

EAR99

Max Operating Temperature

175°C

Min Operating Temperature

-65°C

Applications

SUPER FAST RECOVERY

HTS Code

8541.10.00.80

Terminal Position

UPPER

Terminal Form

SOLDER LUG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

O-MUPM-D1

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

10μA @ 50V

Voltage - Forward (Vf) (Max) @ If

1V @ 50A

Case Connection

CATHODE

Forward Current

50A

Operating Temperature - Junction

-55°C~150°C

Max Surge Current

600A

Forward Voltage

1V

Max Reverse Voltage (DC)

100V

Average Rectified Current

50A

Number of Phases

1

Reverse Recovery Time

75 ns

Peak Reverse Current

10μA

Max Repetitive Reverse Voltage (Vrrm)

100V

Reverse Voltage

100V

Max Forward Surge Current (Ifsm)

600A

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant
