Factory Lead Time

17 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

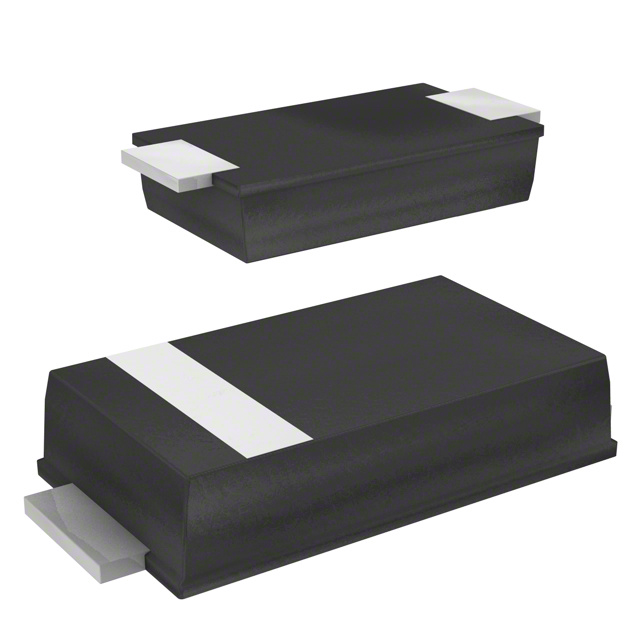

Package / Case

DO-214AD, SMAF

Weight

330mg

Diode Element Material

SILICON

Operating Temperature (Max)

150°C

Operating Temperature (Min)

-55°C

Number of Elements

1

Packaging

Tape & Reel (TR)

Series

Automotive, AEC-Q101

JESD-609 Code

e3

Pbfree Code

yes

Part Status

ACTIVE (Last Updated: 2 days ago)

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Terminal Finish

Tin (Sn)

Applications

ULTRA FAST RECOVERY

HTS Code

8541.10.00.80

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PDSO-F2

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

1μA @ 200V

Voltage - Forward (Vf) (Max) @ If

950mV @ 2A

Forward Current

2A

Operating Temperature - Junction

-55°C~150°C

Output Current-Max

2A

Max Reverse Voltage (DC)

200V

Average Rectified Current

2A

Number of Phases

1

Reverse Recovery Time

35 ns

Max Repetitive Reverse Voltage (Vrrm)

200V

Capacitance @ Vr, F

30pF @ 4V 1MHz

Reverse Current-Max

1μA

Max Forward Surge Current (Ifsm)

50A

REACH SVHC

not_compliant

RoHS Status

ROHS3 Compliant
