Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

11 Weeks

Mount

Through Hole

Mounting Type

Through Hole

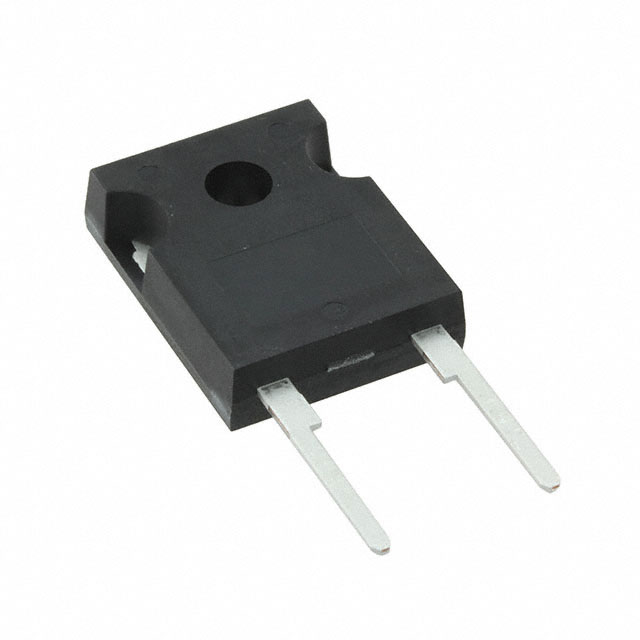

Package / Case

DO-247-2 (Straight Leads)

Number of Pins

2

Diode Element Material

SILICON

Number of Elements

1

Packaging

Tube

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Terminal Finish

MATTE TIN

Max Operating Temperature

175°C

Min Operating Temperature

-65°C

Applications

HIGH VOLTAGE ULTRA FAST RECOVERY

HTS Code

8541.10.00.80

Voltage - Rated DC

600V

Peak Reflow Temperature (Cel)

225

Current Rating

30A

Base Part Number

STTH30

Pin Count

2

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

25μA @ 600V

Output Current

30A

Voltage - Forward (Vf) (Max) @ If

1.85V @ 30A

Forward Current

30A

Operating Temperature - Junction

175°C Max

Max Surge Current

160A

Forward Voltage

1.85V

Max Reverse Voltage (DC)

600V

Average Rectified Current

30A

Number of Phases

1

Reverse Recovery Time

70 ns

Peak Reverse Current

25μA

Max Repetitive Reverse Voltage (Vrrm)

600V

Peak Non-Repetitive Surge Current

300A

Reverse Voltage

600V

Max Forward Surge Current (Ifsm)

160A

Recovery Time

70 ns

Height

20.15mm

Length

15.75mm

Width

5.15mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
