Factory Lead Time

10 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

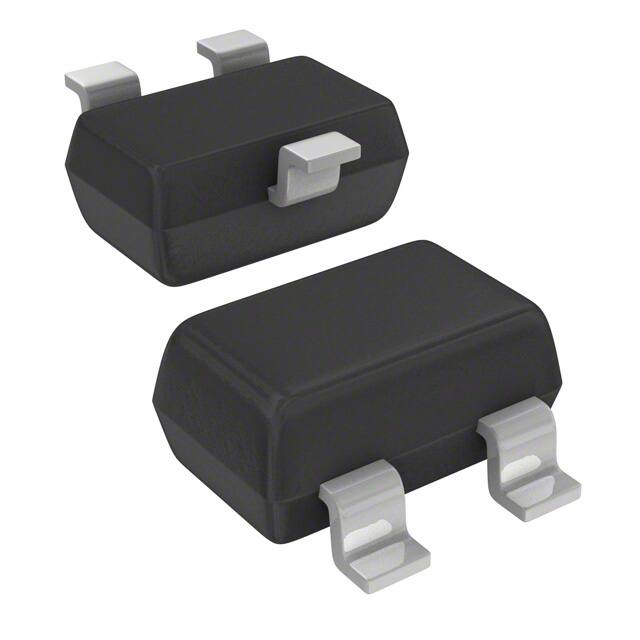

Package / Case

SC-70, SOT-323

Diode Element Material

SILICON

Number of Elements

1

Operating Temperature (Max.)

125°C

Power Dissipation (Max)

0.15W

Packaging

Tape & Reel (TR)

Published

2011

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

Tin (Sn)

HTS Code

8541.10.00.70

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PDSO-G3

Configuration

SINGLE

Speed

Small Signal =< 200mA (Io), Any Speed

Diode Type

Schottky

Current - Reverse Leakage @ Vr

200nA @ 30V

Voltage - Forward (Vf) (Max) @ If

1V @ 40mA

Operating Temperature - Junction

125°C Max

Output Current-Max

0.2A

Voltage - DC Reverse (Vr) (Max)

40V

Max Reverse Voltage (DC)

40V

Average Rectified Current

200mA

Reverse Recovery Time

5 ns

Capacitance @ Vr, F

5pF @ 0V 1MHz

Non-rep Pk Forward Current-Max

0.6A

RoHS Status

ROHS3 Compliant
