Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

6 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

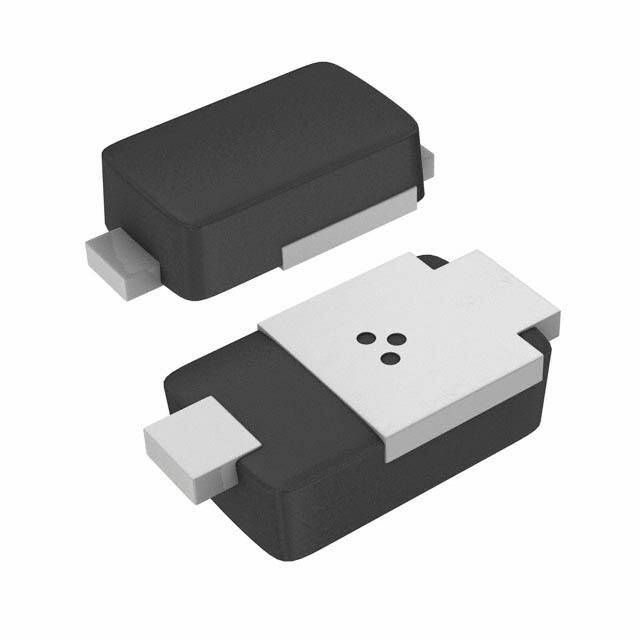

Package / Case

DO-222AA

Number of Pins

2

Diode Element Material

SILICON

Number of Elements

1

Packaging

Cut Tape (CT)

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Max Operating Temperature

150°C

Min Operating Temperature

-65°C

HTS Code

8541.10.00.80

Terminal Position

DUAL

Terminal Form

FLAT

Base Part Number

STPS120

Pin Count

3

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

3.9μA @ 20V

Voltage - Forward (Vf) (Max) @ If

490mV @ 1A

Case Connection

CATHODE

Forward Current

1A

Max Reverse Leakage Current

300μA

Operating Temperature - Junction

150°C Max

Max Surge Current

50A

Output Current-Max

1A

Forward Voltage

440mV

Max Reverse Voltage (DC)

20V

Average Rectified Current

1A

Peak Reverse Current

3.9μA

Max Repetitive Reverse Voltage (Vrrm)

20V

Peak Non-Repetitive Surge Current

50A

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
