Mount

Through Hole

Mounting Type

Through Hole

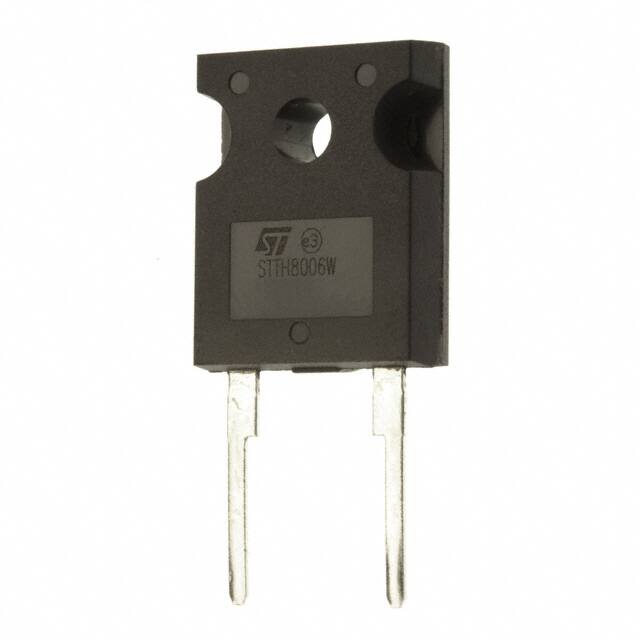

Package / Case

DO-247-2 (Straight Leads)

Number of Pins

2

Diode Element Material

SILICON

Number of Elements

1

Packaging

Tube

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Terminal Finish

MATTE TIN

Max Operating Temperature

175°C

Min Operating Temperature

-65°C

Applications

HIGH VOLTAGE ULTRA FAST RECOVERY

HTS Code

8541.10.00.80

Peak Reflow Temperature (Cel)

225

Reach Compliance Code

unknown

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STTH2

Pin Count

2

Qualification Status

Not Qualified

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

25μA @ 600V

Voltage - Forward (Vf) (Max) @ If

1.75V @ 20A

Operating Temperature - Junction

175°C Max

Max Surge Current

160A

Forward Voltage

1.75V

Max Reverse Voltage (DC)

600V

Average Rectified Current

20A

Number of Phases

1

Reverse Recovery Time

70 ns

Peak Reverse Current

25μA

Peak Non-Repetitive Surge Current

160A

Reverse Voltage

600V

Recovery Time

70 ns

RoHS Status

ROHS3 Compliant
