Mount

Through Hole

Mounting Type

Through Hole

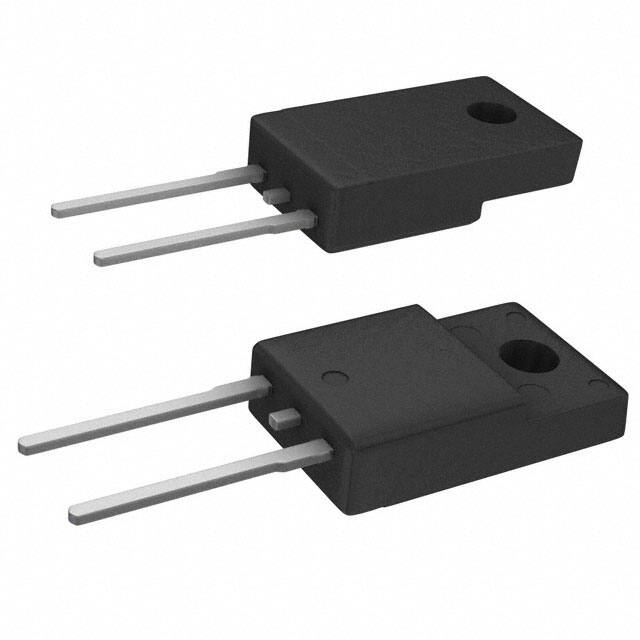

Package / Case

TO-220-2 Full Pack

Number of Pins

2

Diode Element Material

SILICON

Operating Temperature (Max)

150°C

Operating Temperature (Min)

-55°C

Number of Elements

1

Packaging

Bulk

Published

2011

Part Status

Not For New Designs

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Applications

SUPER FAST RECOVERY

HTS Code

8541.10.00.80

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

10μA @ 600V

Voltage - Forward (Vf) (Max) @ If

1.7V @ 10A

Case Connection

ISOLATED

Forward Current

10A

Operating Temperature - Junction

150°C Max

Max Surge Current

100A

Forward Voltage

1.4V

Max Reverse Voltage (DC)

600V

Average Rectified Current

10A

Number of Phases

1

Reverse Recovery Time

40 ns

Peak Reverse Current

10μA

Max Repetitive Reverse Voltage (Vrrm)

600V

Peak Non-Repetitive Surge Current

100A

Recovery Time

30 ns

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
