Factory Lead Time

10 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

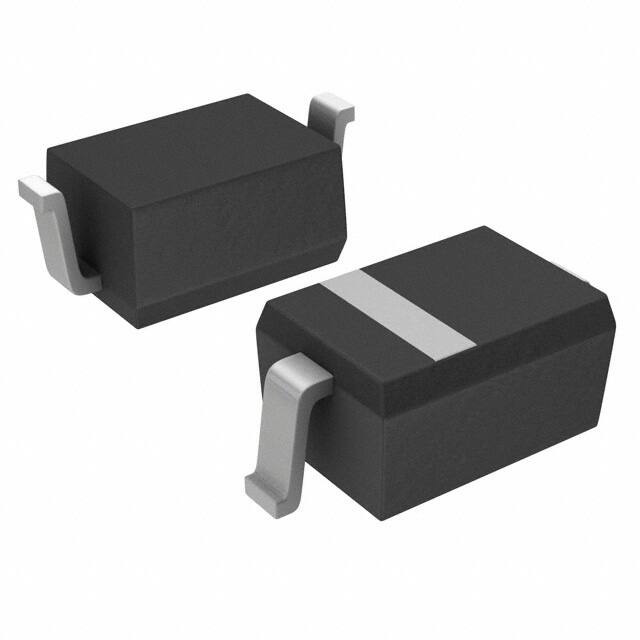

Package / Case

SC-76, SOD-323

Diode Element Material

SILICON

Number of Elements

1

Operating Temperature (Max.)

125°C

Operating Temperature (Min.)

-40°C

Power Dissipation (Max)

0.25W

Packaging

Tape & Reel (TR)

Published

2006

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Additional Feature

FREE WHEELING DIODE

HTS Code

8541.10.00.80

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PDSO-G2

Configuration

SINGLE

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

1μA @ 30V

Voltage - Forward (Vf) (Max) @ If

600mV @ 1A

Output Current-Max

1A

Voltage - DC Reverse (Vr) (Max)

40V

Max Reverse Voltage (DC)

40V

Average Rectified Current

1A

Capacitance @ Vr, F

120pF @ 4V 1MHz

Non-rep Pk Forward Current-Max

9A

RoHS Status

ROHS3 Compliant
