Lifecycle Status

NRND (Last Updated: 7 months ago)

Mount

Through Hole

Mounting Type

Through Hole

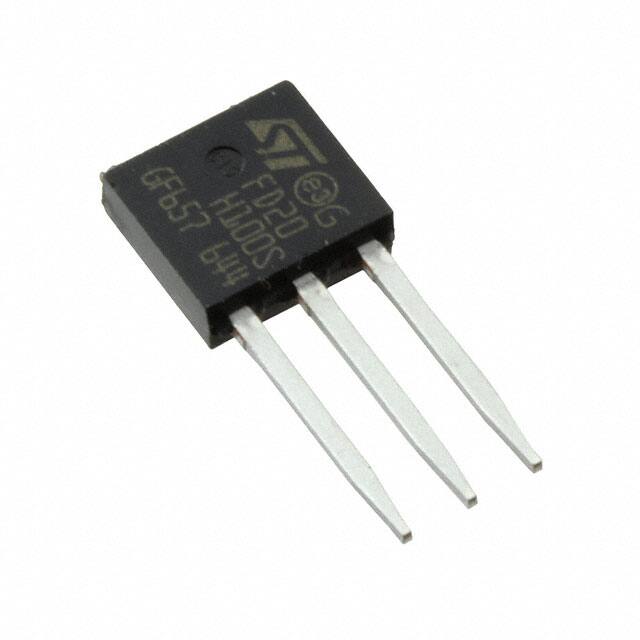

Package / Case

TO-251-3 Short Leads, IPak, TO-251AA

Diode Element Material

SILICON

Number of Elements

1

Operating Temperature (Max.)

175°C

Packaging

Tube

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Applications

EFFICIENCY

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

FERD20

JESD-30 Code

R-PSIP-T3

Configuration

SINGLE

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

FERD (Field Effect Rectifier Diode)

Current - Reverse Leakage @ Vr

140μA @ 100V

Voltage - Forward (Vf) (Max) @ If

705mV @ 20A

Case Connection

CATHODE

Operating Temperature - Junction

175°C Max

Voltage - DC Reverse (Vr) (Max)

100V

Max Reverse Voltage (DC)

100V

Average Rectified Current

20A

Number of Phases

1

Non-rep Pk Forward Current-Max

150A

Reverse Current-Max

140μA

RoHS Status

ROHS3 Compliant
