Factory Lead Time

19 Weeks

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

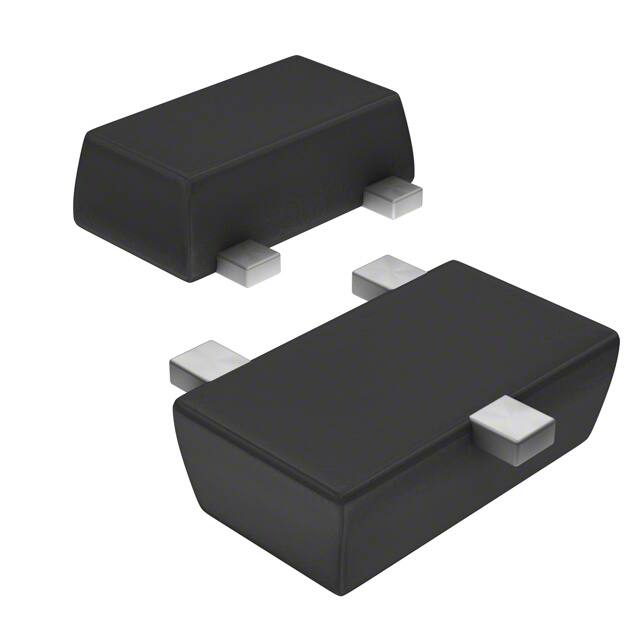

Package / Case

TO-236-3, SC-59, SOT-23-3

Number of Pins

3

Weight

7.994566mg

Diode Element Material

SILICON

Number of Elements

1

Packaging

Tape & Reel (TR)

Published

2006

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Max Operating Temperature

150°C

Min Operating Temperature

-65°C

Additional Feature

HIGH RELIABILITY

HTS Code

8541.10.00.70

Capacitance

5pF

Power Rating

350mW

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

40

Base Part Number

BAS20

Pin Count

3

Element Configuration

Single

Speed

Small Signal =< 200mA (Io), Any Speed

Diode Type

Standard

Current - Reverse Leakage @ Vr

100nA @ 150V

Power Dissipation

250mW

Output Current

200mA

Voltage - Forward (Vf) (Max) @ If

1.25V @ 200mA

Forward Current

400mA

Operating Temperature - Junction

-65°C~150°C

Max Surge Current

2.5A

Forward Voltage

1.25V

Max Reverse Voltage (DC)

150V

Average Rectified Current

200mA

Reverse Recovery Time

50 ns

Peak Reverse Current

100nA

Max Repetitive Reverse Voltage (Vrrm)

200V

Capacitance @ Vr, F

5pF @ 0V 1MHz

Peak Non-Repetitive Surge Current

2.5A

Recovery Time

50 ns

Height

1mm

Length

3.05mm

Width

1.4mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
