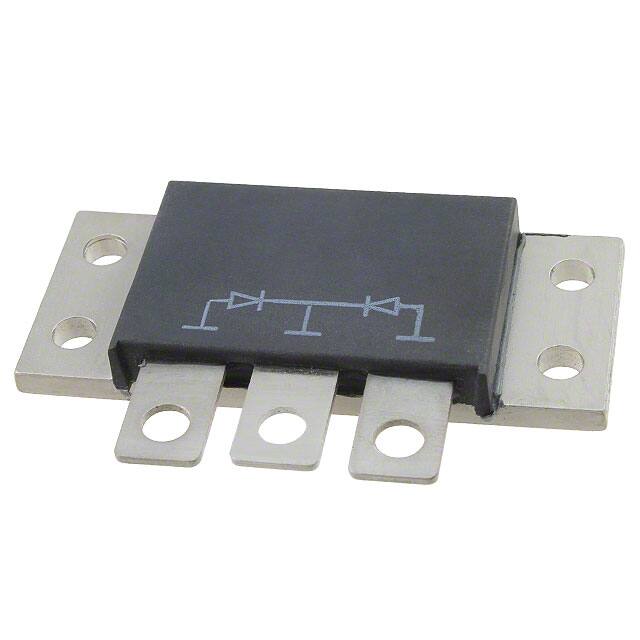

Mount

Screw

Mounting Type

Screw Mount

Package / Case

TO-249AA Isolated Base

Number of Pins

3

Diode Element Material

SILICON

Number of Elements

2

Packaging

Bulk

Published

2009

JESD-609 Code

e0

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

TIN LEAD

Max Operating Temperature

175°C

Min Operating Temperature

-55°C

Applications

ULTRA FAST RECOVERY

HTS Code

8541.10.00.80

Terminal Position

SINGLE

Terminal Form

SOLDER LUG

Pin Count

3

Element Configuration

Common Cathode

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

25μA @ 800V

Voltage - Forward (Vf) (Max) @ If

1.35V @ 70A

Forward Current

140A

Forward Voltage

1.35V

Max Reverse Voltage (DC)

800V

Average Rectified Current

70A

Number of Phases

1

Reverse Recovery Time

75 ns

Peak Reverse Current

25μA

Max Repetitive Reverse Voltage (Vrrm)

800V

Peak Non-Repetitive Surge Current

700A

Diode Configuration

1 Pair Common Cathode

Radiation Hardening

No

RoHS Status

RoHS Compliant
