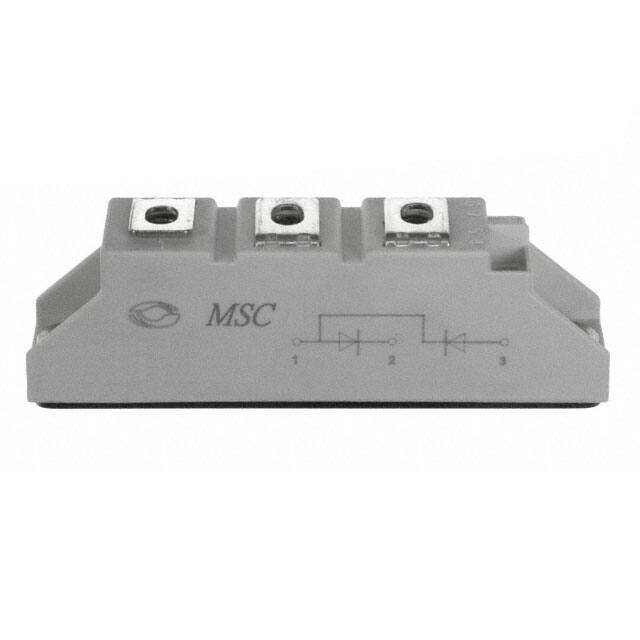

Mount

Chassis Mount, Screw

Mounting Type

Chassis Mount

Package / Case

D1

Number of Pins

3

Diode Element Material

SILICON

Number of Elements

2

Packaging

Bulk

Published

2009

JESD-609 Code

e0

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

TIN LEAD

Max Operating Temperature

150°C

Min Operating Temperature

-40°C

Applications

GENERAL PURPOSE

Additional Feature

UL RECOGNIZED

HTS Code

8541.10.00.80

Terminal Position

UPPER

Terminal Form

UNSPECIFIED

Pin Count

3

Element Configuration

Common Cathode

Speed

Standard Recovery >500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

5mA @ 1600V

Voltage - Forward (Vf) (Max) @ If

1.35V @ 300A

Case Connection

ISOLATED

Forward Current

100A

Voltage - DC Reverse (Vr) (Max)

1600V

Forward Voltage

1.35V

Max Reverse Voltage (DC)

1.6kV

Average Rectified Current

100A

Number of Phases

1

Peak Reverse Current

5mA

Max Repetitive Reverse Voltage (Vrrm)

1.6kV

Peak Non-Repetitive Surge Current

2.5kA

Diode Configuration

1 Pair Common Cathode

Radiation Hardening

No

RoHS Status

RoHS Compliant
