Mount

Radial, Through Hole

Mounting Type

Through Hole

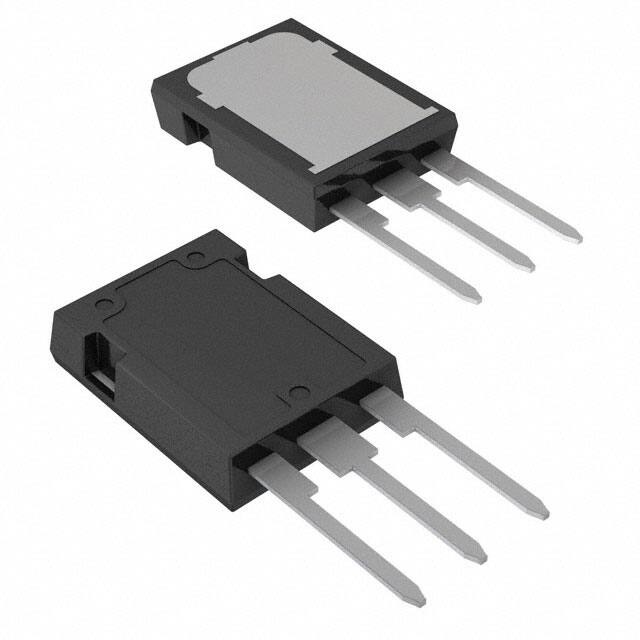

Package / Case

TO-247-3

Number of Pins

247

Diode Element Material

SILICON

Number of Elements

2

Packaging

Tube

Series

Q Automotive

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

Tin (Sn)

Max Operating Temperature

175°C

Min Operating Temperature

-65°C

Applications

HIGH VOLTAGE POWER

Additional Feature

LOW LEAKAGE CURRENT

HTS Code

8541.10.00.80

Voltage - Rated DC

100V

Terminal Position

SINGLE

Current Rating

80A

Base Part Number

STPS80

Pin Count

3

JESD-30 Code

R-PSIP-T3

Element Configuration

Common Cathode

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

20μA @ 100V

Voltage - Forward (Vf) (Max) @ If

800mV @ 40A

Forward Current

40A

Max Reverse Leakage Current

20μA

Operating Temperature - Junction

175°C Max

Max Surge Current

400A

Forward Voltage

940mV

Max Reverse Voltage (DC)

100V

Average Rectified Current

40A

Number of Phases

1

Peak Reverse Current

20μA

Max Repetitive Reverse Voltage (Vrrm)

100V

Peak Non-Repetitive Surge Current

400A

Diode Configuration

1 Pair Common Cathode

Max Forward Surge Current (Ifsm)

400A

Height

20.3mm

Length

15.9mm

Width

5.3mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
