Factory Lead Time

6 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

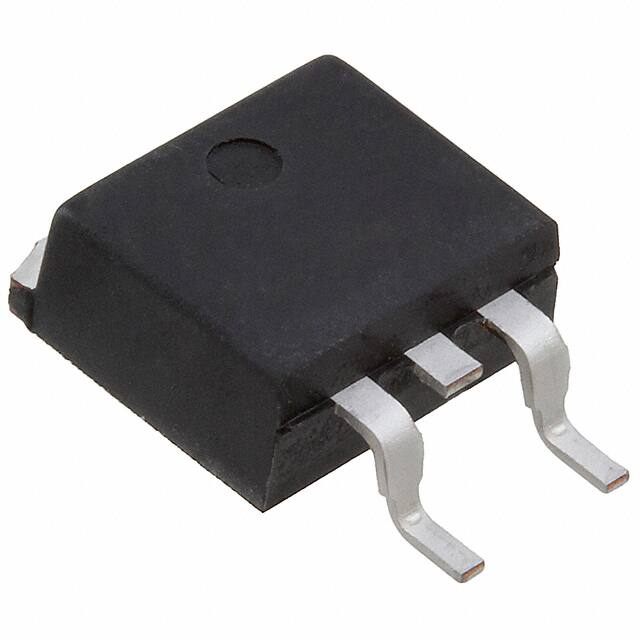

Package / Case

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Number of Pins

3

Diode Element Material

SILICON

Number of Elements

2

Packaging

Tape & Reel (TR)

Series

Qspeed™

Published

2013

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

2

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Max Operating Temperature

150°C

Min Operating Temperature

-55°C

Applications

EFFICIENCY

HTS Code

8541.10.00.80

Max Power Dissipation

56.8W

Terminal Position

SINGLE

Terminal Form

GULL WING

JESD-30 Code

R-PSSO-G2

Element Configuration

Common Cathode

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Current - Reverse Leakage @ Vr

500μA @ 200V

Voltage - Forward (Vf) (Max) @ If

1.2V @ 15A

Forward Current

30A

Max Reverse Leakage Current

350A

Operating Temperature - Junction

-55°C~150°C

Max Surge Current

130A

Max Reverse Voltage (DC)

200V

Average Rectified Current

15A

Number of Phases

1

Reverse Recovery Time

16.5 ns

Max Repetitive Reverse Voltage (Vrrm)

200V

Peak Non-Repetitive Surge Current

350A

Diode Configuration

1 Pair Common Cathode

Recovery Time

16.5 ns

Radiation Hardening

No

RoHS Status

RoHS Compliant
