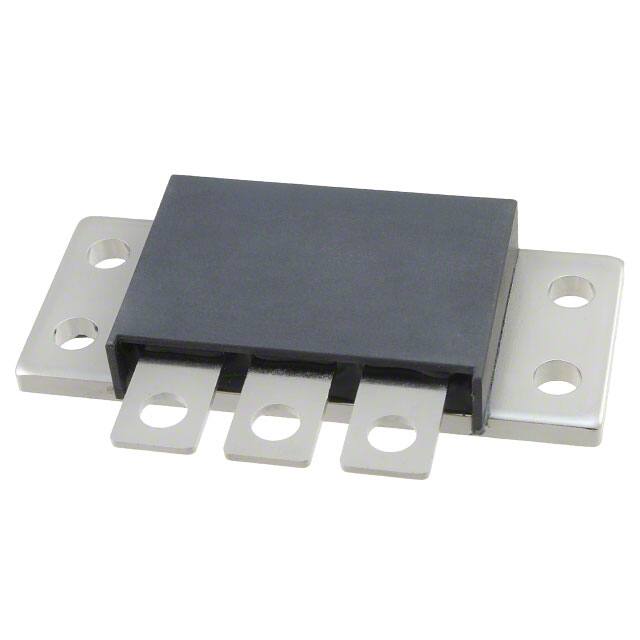

Lifecycle Status

PRODUCTION (Last Updated: 6 months ago)

Factory Lead Time

6 Weeks

Mount

Chassis Mount

Mounting Type

Chassis Mount

Package / Case

TO-249AB

Diode Element Material

SILICON

Number of Elements

2

Packaging

Bulk

Published

2010

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Max Operating Temperature

125°C

Min Operating Temperature

-40°C

Applications

POWER

HTS Code

8541.10.00.80

Terminal Position

SINGLE

Terminal Form

SOLDER LUG

JESD-30 Code

R-PSFM-D3

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

2mA @ 20V

Voltage - Forward (Vf) (Max) @ If

650mV @ 100A

Case Connection

ISOLATED

Forward Current

100A

Max Reverse Leakage Current

1μA

Operating Temperature - Junction

-55°C~150°C

Max Surge Current

1kA

Output Current-Max

50A

Max Reverse Voltage (DC)

35V

Average Rectified Current

100A

Number of Phases

1

Peak Reverse Current

1A

Max Repetitive Reverse Voltage (Vrrm)

35V

Diode Configuration

1 Pair Common Cathode

RoHS Status

RoHS Compliant
