Factory Lead Time

10 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

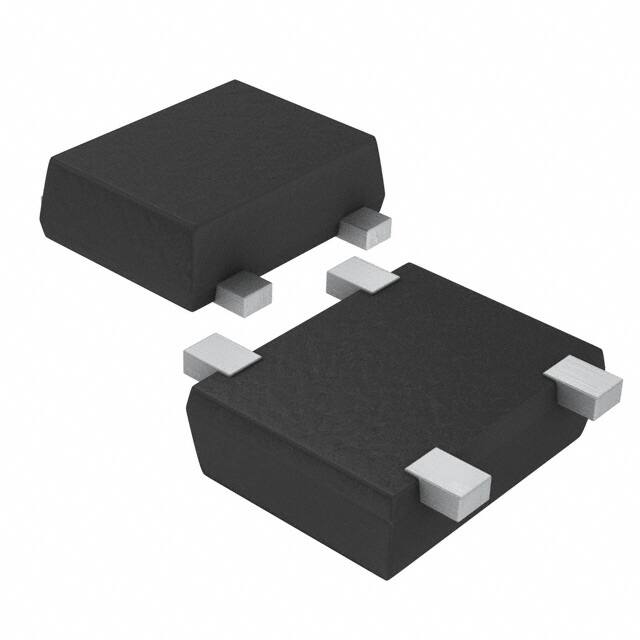

Package / Case

SC-75-4, SOT-543

Number of Pins

4

Diode Element Material

SILICON

Number of Elements

2

Voltage Rated

25V

Packaging

Tape & Reel (TR)

Published

2007

Tolerance

10%

Pbfree Code

yes

Part Status

Not For New Designs

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Max Operating Temperature

125°C

Min Operating Temperature

-55°C

Additional Feature

HIGH RELIABILITY

Capacitance

100nF

Terminal Position

DUAL

Terminal Form

FLAT

Base Part Number

RB480Y

Speed

Small Signal =< 200mA (Io), Any Speed

Diode Type

Schottky

Current - Reverse Leakage @ Vr

1μA @ 10V

Voltage - Forward (Vf) (Max) @ If

530mV @ 100mA

Forward Current

100mA

Operating Temperature - Junction

125°C Max

Forward Voltage

530mV

Max Reverse Voltage (DC)

30V

Average Rectified Current

100mA

Peak Reverse Current

1μA

Max Repetitive Reverse Voltage (Vrrm)

30V

Peak Non-Repetitive Surge Current

1A

Diode Configuration

2 Independent

Max Forward Surge Current (Ifsm)

1A

Reverse Test Voltage

10V

Length

1.6002mm

Width

787.4μm

Thickness

889μm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
