Factory Lead Time

12 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

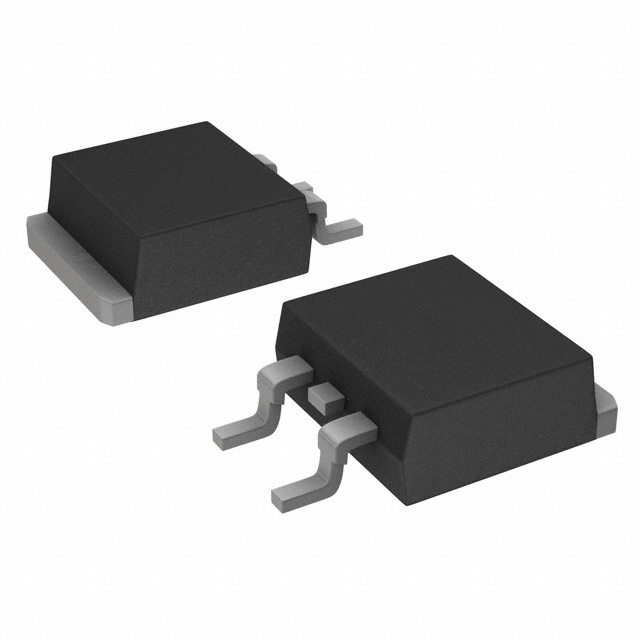

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Diode Element Material

SILICON

Number of Elements

2

Operating Temperature (Max.)

150°C

Packaging

Tape & Reel (TR)

Published

2013

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Applications

EFFICIENCY

Additional Feature

LOW POWER LOSS

HTS Code

8541.10.00.80

Terminal Position

SINGLE

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PSSO-G2

Element Configuration

Common Cathode

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

500μA @ 200V

Voltage - Forward (Vf) (Max) @ If

1V @ 10A

Operating Temperature - Junction

-55°C~150°C

Output Current-Max

5A

Current - Average Rectified (Io)

10A DC

Max Reverse Voltage (DC)

200V

Average Rectified Current

10A

Number of Phases

1

Non-rep Pk Forward Current-Max

150A

Diode Configuration

1 Pair Common Cathode

Reverse Current-Max

500μA

RoHS Status

ROHS3 Compliant
