Mount

Through Hole

Mounting Type

Through Hole

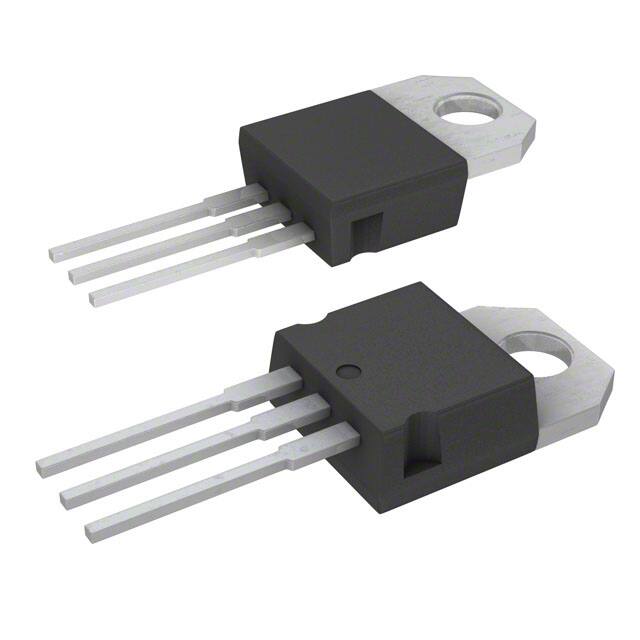

Package / Case

TO-220-3

Transistor Element Material

SILICON

Collector-Emitter Breakdown Voltage

600V

Number of Elements

1

Test Conditions

480V, 20A, 10 Ω, 15V

Turn Off Delay Time

120 μs

Operating Temperature

-55°C~150°C TJ

Packaging

Tube

Series

PowerMESH™

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

Max Power Dissipation

185W

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STGP30

Pin Count

3

JESD-30 Code

R-PSFM-T3

Qualification Status

Not Qualified

Element Configuration

Single

Input Type

Standard

Turn On Delay Time

29 ns

Power - Max

185W

Transistor Application

POWER CONTROL

Polarity/Channel Type

N-CHANNEL

Collector Emitter Voltage (VCEO)

600V

Max Collector Current

60A

JEDEC-95 Code

TO-220AB

Max Breakdown Voltage

600V

Turn On Time

41 ns

Vce(on) (Max) @ Vge, Ic

2.7V @ 15V, 20A

Turn Off Time-Nom (toff)

290 ns

Gate Charge

96nC

Current - Collector Pulsed (Icm)

125A

Td (on/off) @ 25°C

29ns/120ns

Switching Energy

350μJ (on), 435μJ (off)

Gate-Emitter Voltage-Max

20V

Gate-Emitter Thr Voltage-Max

6.5V

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
