Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

15 Weeks

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

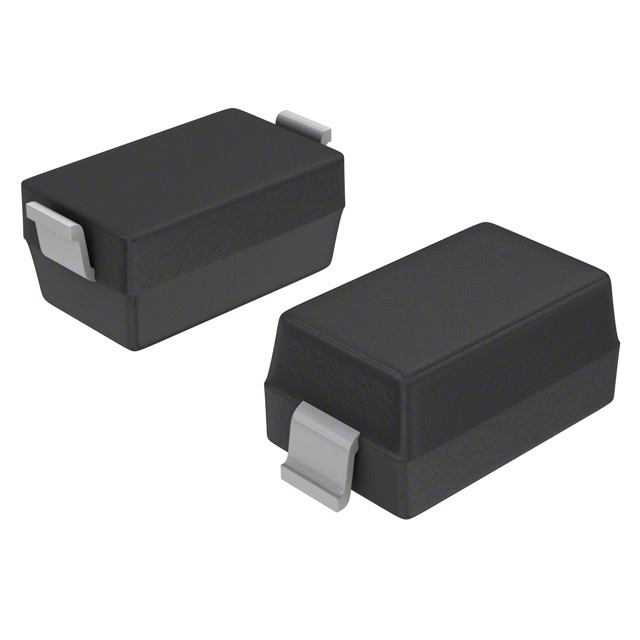

Package / Case

SOD-123

Number of Pins

2

Diode Element Material

SILICON

Number of Elements

1

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Max Operating Temperature

150°C

Min Operating Temperature

-65°C

Additional Feature

EXTREME FAST SWITCHING, FREE WHEELING

HTS Code

8541.10.00.80

Voltage - Rated DC

40V

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Current Rating

1A

Base Part Number

STPS140

Pin Count

2

Polarity

Standard

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

40μA @ 400V

Output Current

1A

Voltage - Forward (Vf) (Max) @ If

550mV @ 1A

Forward Current

1A

Max Reverse Leakage Current

10μA

Operating Temperature - Junction

150°C Max

Max Surge Current

5.5A

Current - Average Rectified (Io)

1A DC

Forward Voltage

550mV

Max Reverse Voltage (DC)

40V

Average Rectified Current

1A

Peak Reverse Current

10μA

Max Repetitive Reverse Voltage (Vrrm)

40V

Peak Non-Repetitive Surge Current

5.5A

Max Forward Surge Current (Ifsm)

5.5A

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
