Factory Lead Time

12 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

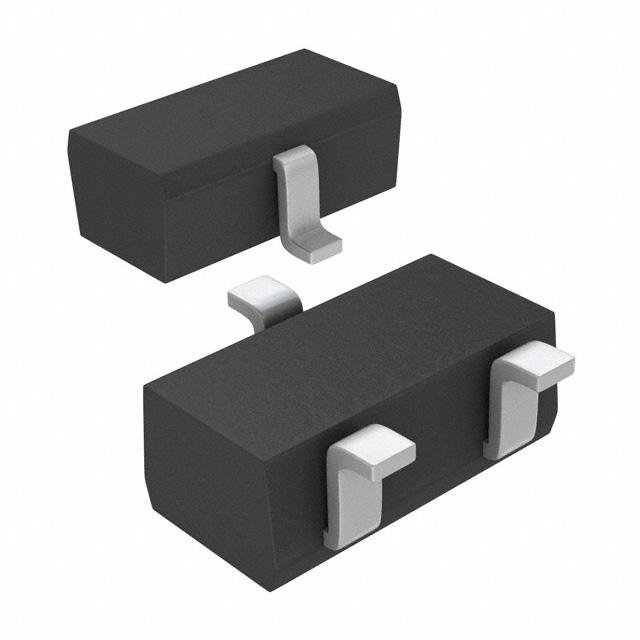

Package / Case

TO-236-3, SC-59, SOT-23-3

Number of Pins

3

Diode Element Material

SILICON

Number of Elements

2

Packaging

Cut Tape (CT)

Published

2007

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

Termination

SMD/SMT

ECCN Code

EAR99

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Max Operating Temperature

150°C

Min Operating Temperature

-55°C

Additional Feature

HIGH RELIABILITY

HTS Code

8541.10.00.70

Capacitance

3.5pF

Voltage - Rated DC

80V

Max Power Dissipation

200mW

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Current Rating

100mA

Time@Peak Reflow Temperature-Max (s)

10

Base Part Number

DAN202

Pin Count

3

Element Configuration

Common Cathode

Speed

Small Signal =< 200mA (Io), Any Speed

Diode Type

Standard

Current - Reverse Leakage @ Vr

100nA @ 70V

Power Dissipation

200mW

Voltage - Forward (Vf) (Max) @ If

1.2V @ 100mA

Forward Current

150mA

Max Reverse Leakage Current

100nA

Operating Temperature - Junction

150°C Max

Max Surge Current

6A

Output Current-Max

0.1A

Forward Voltage

1V

Max Reverse Voltage (DC)

80V

Average Rectified Current

100mA

Reverse Recovery Time

4 ns

Peak Reverse Current

100nA

Max Repetitive Reverse Voltage (Vrrm)

80V

Peak Non-Repetitive Surge Current

6A

Diode Configuration

1 Pair Common Cathode

Max Forward Surge Current (Ifsm)

6A

Recovery Time

4 ns

Height

1.1mm

Length

2.9mm

Width

1.6mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
