Factory Lead Time

12 Weeks

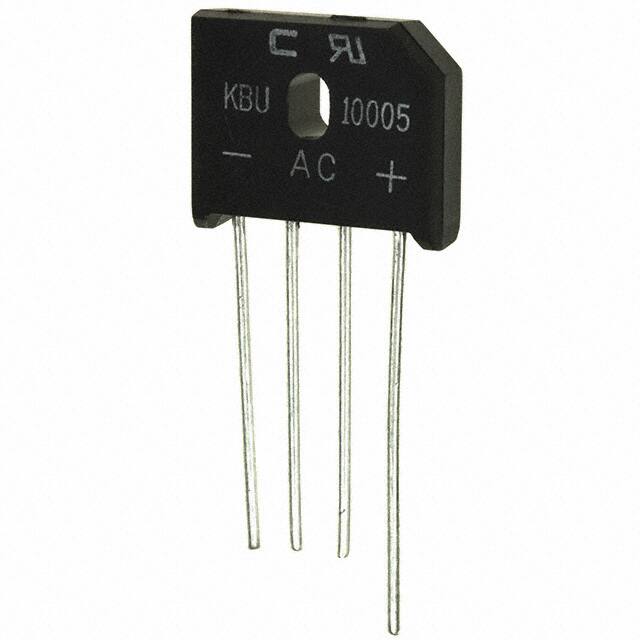

Package / Case

4-SIP, KBU

Mounting Type

Through Hole

Mount

Through Hole

Diode Element Material

SILICON

Number of Elements

4

Published

2011

Packaging

Tray

Operating Temperature

-55°C~150°C TJ

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Additional Feature

UL RECOGNIZED

HTS Code

8541.10.00.80

Terminal Form

WIRE

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

30

JESD-30 Code

R-PSIP-W4

Configuration

BRIDGE, 4 ELEMENTS

Diode Type

Single Phase

Current - Reverse Leakage @ Vr

10μA @ 50V

Voltage - Forward (Vf) (Max) @ If

1V @ 5A

Max Reverse Leakage Current

10μA

Max Surge Current

240A

Output Current-Max

10A

Current - Average Rectified (Io)

10A

Number of Phases

1

Voltage - Peak Reverse (Max)

50V

Breakdown Voltage-Min

50V

RoHS Status

ROHS3 Compliant
