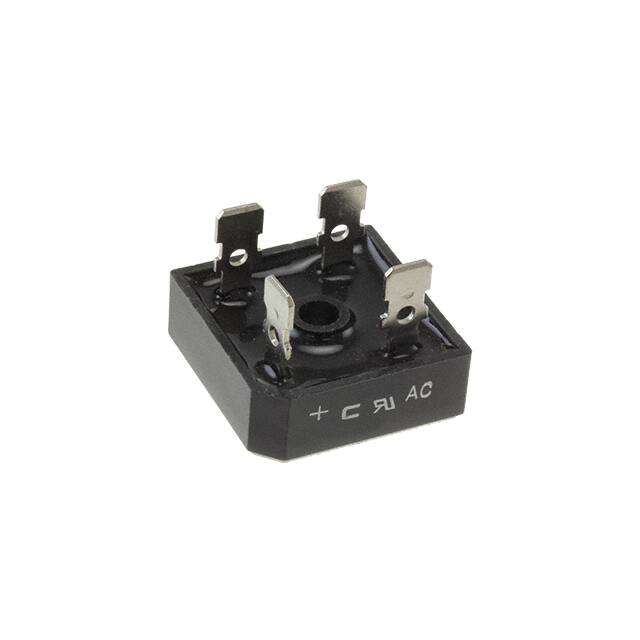

Factory Lead Time

10 Weeks

Mounting Type

QC Terminal

Package / Case

4-Square, BR

Surface Mount

NO

Diode Element Material

SILICON

Number of Elements

4

Operating Temperature

-55°C~125°C TJ

Packaging

Tray

Published

2006

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

Additional Feature

UL RECOGNIZED

Terminal Position

UPPER

Terminal Form

SOLDER LUG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-XUFM-D4

Configuration

BRIDGE, 4 ELEMENTS

Diode Type

Single Phase

Current - Reverse Leakage @ Vr

10μA @ 50V

Voltage - Forward (Vf) (Max) @ If

1.1V @ 25A

Case Connection

ISOLATED

Output Current-Max

50A

Current - Average Rectified (Io)

50A

Number of Phases

1

Non-rep Pk Forward Current-Max

500A

Voltage - Peak Reverse (Max)

1kV

RoHS Status

ROHS3 Compliant
