Factory Lead Time

12 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

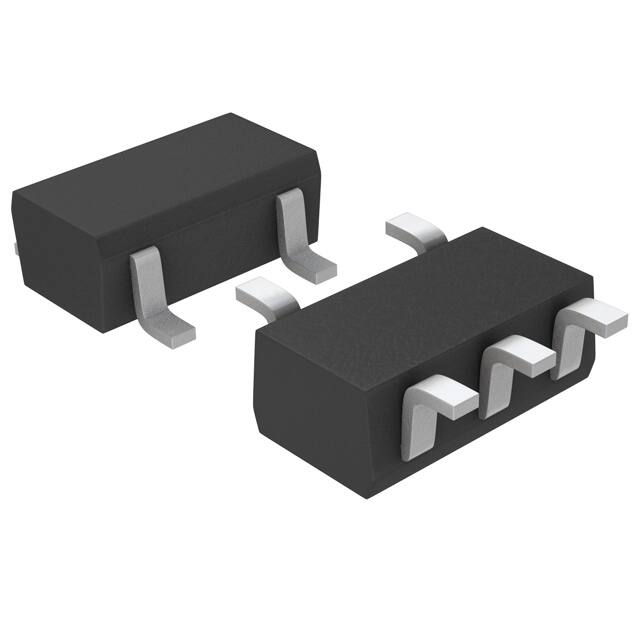

Package / Case

SC-74A, SOT-753

Number of Pins

5

Diode Element Material

SILICON

Number of Elements

4

Operating Temperature

150°C TJ

Packaging

Tape & Reel (TR)

Published

2006

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Termination

SMD/SMT

ECCN Code

EAR99

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Capacitance

3.5pF

Voltage - Rated DC

80V

Max Power Dissipation

80mW

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Current Rating

25mA

Time@Peak Reflow Temperature-Max (s)

10

Base Part Number

FMP1T148

Pin Count

5

Element Configuration

Common Anode

Diode Type

Single Phase

Current - Reverse Leakage @ Vr

100nA @ 70V

Power Dissipation

80mW

Output Current

25mA

Voltage - Forward (Vf) (Max) @ If

900mV @ 5mA

Forward Current

25mA

Max Reverse Leakage Current

100nA

Max Surge Current

250mA

Forward Voltage

900mV

Reverse Recovery Time

4 ns

Peak Reverse Current

100nA

Max Repetitive Reverse Voltage (Vrrm)

80V

Peak Non-Repetitive Surge Current

250mA

Max Forward Surge Current (Ifsm)

80mA

Recovery Time

4 ns

Reverse Test Voltage

70V

Height

1.1mm

Length

2.9mm

Width

1.6mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
