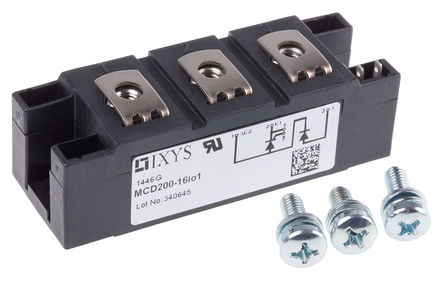

Factory Lead Time

24 Weeks

Mounting Type

Chassis Mount

Package / Case

Y4-M6

Surface Mount

NO

Number of Elements

1

Number of SCRs/Diodes

1 SCR, 1 Diode

Voltage-Off State

1.6kV

Operating Temperature

-40°C~125°C TJ

Packaging

Bulk

Published

2004

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Additional Feature

UL RECOGNIZED

HTS Code

8541.30.00.80

Terminal Position

UPPER

Terminal Form

UNSPECIFIED

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

MC*200

Pin Count

5

JESD-30 Code

R-XUFM-X5

Qualification Status

Not Qualified

Configuration

SINGLE WITH BUILT-IN DIODE

Case Connection

ISOLATED

Trigger Device Type

SCR

Voltage - Gate Trigger (Vgt) (Max)

2V

Current - Non Rep. Surge 50, 60Hz (Itsm)

8000A 8600A

Current - Gate Trigger (Igt) (Max)

150mA

On-State Current-Max

216000A

Current - On State (It (RMS)) (Max)

340A

Structure

Series Connection - SCR/Diode

Repetitive Peak Off-state Voltage

1600V

Leakage Current (Max)

15mA

Current - On State (It (AV)) (Max)

216A

Non-Repetitive Pk On-state Cur

8640 A

Repetitive Peak Reverse Voltage

1600V

Holding Current-Max

150mA

Desc. of Screw Terminals

A-K-AK

Desc. of Quick-Connects

G-GR

RoHS Status

ROHS3 Compliant
