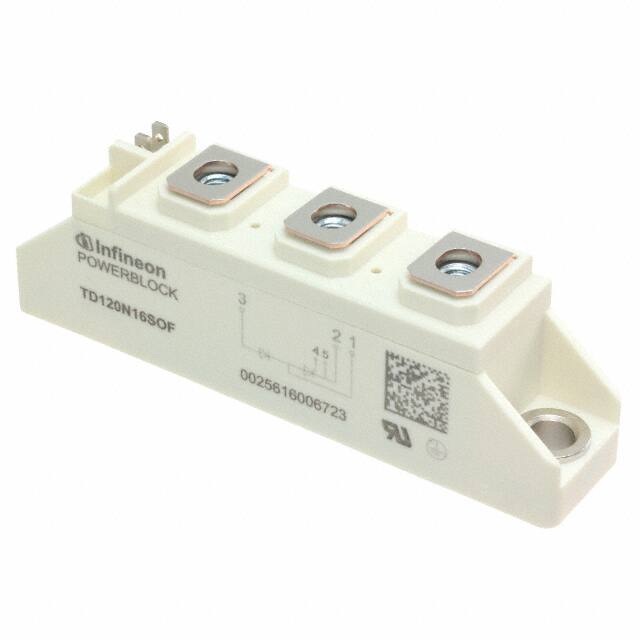

Factory Lead Time

16 Weeks

Mounting Type

Chassis Mount

Package / Case

Module

Surface Mount

NO

Number of Elements

1

Number of SCRs/Diodes

1 SCR, 1 Diode

Operating Temperature

-40°C~125°C

Packaging

Tray

Published

2010

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Additional Feature

UL RECOGNIZED

Terminal Position

UPPER

Terminal Form

UNSPECIFIED

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Reference Standard

IEC-60747-6

JESD-30 Code

R-XUFM-X5

Configuration

SINGLE WITH BUILT-IN DIODE

Case Connection

ISOLATED

Halogen Free

Not Halogen Free

Max Repetitive Reverse Voltage (Vrrm)

1.6kV

Trigger Device Type

SCR

Voltage - Gate Trigger (Vgt) (Max)

2.5V

Current - Non Rep. Surge 50, 60Hz (Itsm)

1500A @ 50Hz

Current - Gate Trigger (Igt) (Max)

100mA

Max Forward Surge Current (Ifsm)

1.2kA

Current - Hold (Ih) (Max)

250mA

Current - On State (It (RMS)) (Max)

90A

Structure

Series Connection - SCR/Diode

Repetitive Peak Off-state Voltage

1600V

Current - On State (It (AV)) (Max)

55A

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
