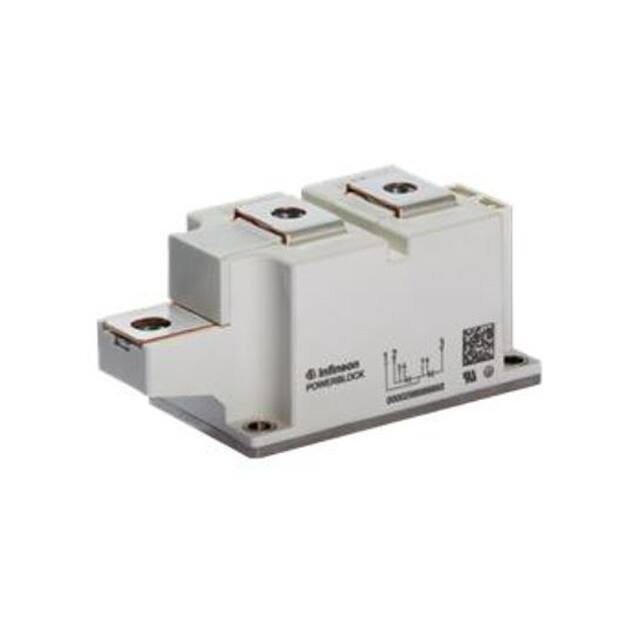

Factory Lead Time

16 Weeks

Mounting Type

Chassis Mount

Package / Case

Module

Surface Mount

NO

Number of Elements

2

Number of SCRs/Diodes

2 SCRs

Operating Temperature

-40°C~130°C

Packaging

Tray

Published

2012

Part Status

Active

Moisture Sensitivity Level (MSL)

Not Applicable

Number of Terminations

7

ECCN Code

EAR99

Additional Feature

UL RECOGNIZED

HTS Code

8541.30.00.80

Terminal Position

UPPER

Terminal Form

UNSPECIFIED

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Reference Standard

IEC-747-6

JESD-30 Code

R-XUFM-X7

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Case Connection

ISOLATED

Halogen Free

Not Halogen Free

Max Repetitive Reverse Voltage (Vrrm)

1.6kV

Trigger Device Type

SCR

Voltage - Gate Trigger (Vgt) (Max)

2V

Current - Non Rep. Surge 50, 60Hz (Itsm)

9000A @ 50Hz

Current - Gate Trigger (Igt) (Max)

150mA

Max Forward Surge Current (Ifsm)

9kA

Current - On State (It (RMS)) (Max)

520A

Structure

Series Connection - All SCRs

Repetitive Peak Off-state Voltage

1600V

Current - On State (It (AV)) (Max)

280A

RoHS Status

RoHS Compliant

Lead Free

Lead Free
