Lifecycle Status

OBSOLETE (Last Updated: 2 weeks ago)

Package / Case

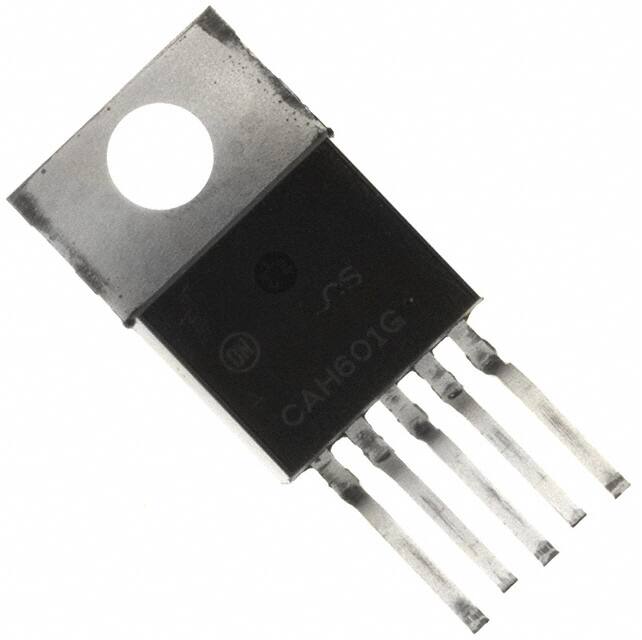

TO-220-5 Formed Leads

Mounting Type

Through Hole

Mount

Through Hole

Number of Pins

5

Packaging

Tube

Operating Temperature

-40°C~125°C

Published

2004

JESD-609 Code

e0

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Terminal Position

ZIG-ZAG

Number of Functions

1

Terminal Pitch

1.7mm

Reach Compliance Code

not_compliant

Base Part Number

CS8147

Pin Count

5

Current - Supply (Max)

120mA

Number of Outputs

2

Qualification Status

Not Qualified

Voltage - Input (Max)

26V

Output Voltage

5V

Output Type

Fixed

Output Configuration

Positive

Control Features

Enable

Output Voltage 1

10V

Input Voltage (Min)

11V

Voltage - Output (Min/Fixed)

10V 5V

Number of Regulators

2

Protection Features

Over Temperature, Over Voltage, Reverse Polarity, Short Circuit

Current - Quiescent (Iq)

7mA

Voltage Dropout (Max)

0.7V @ 500mA 2.5V @ 70mA

Dropout Voltage

500mV

Dropout Voltage1-Nom

0.5V

Voltage Tolerance-Max

5%

Min Current Limit

550mA

Output Voltage 2

5V

RoHS Status

Non-RoHS Compliant

Lead Free

Contains Lead
