Lifecycle Status

IN PRODUCTION (Last Updated: 1 month ago)

Mount

Through Hole

Mounting Type

Through Hole

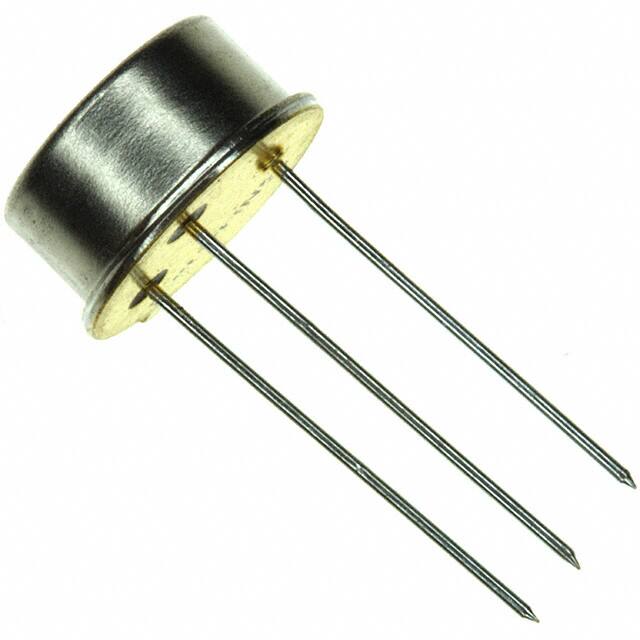

Package / Case

TO-205AD, TO-39-3 Metal Can

Operating Temperature

-55°C~125°C TA

Packaging

Bulk

Series

Military, MIL-STD-883

Published

1999

JESD-609 Code

e0

Pbfree Code

no

Part Status

Discontinued

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

TIN LEAD

Terminal Position

BOTTOM

Terminal Form

WIRE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

SG7815

Pin Count

3

JESD-30 Code

O-MBCY-W3

Current - Supply (Max)

7mA

Number of Outputs

1

Qualification Status

Not Qualified

Voltage - Input (Max)

35V

Output Voltage

15V

Output Type

Fixed

Max Output Current

1.5A

Output Configuration

Positive

Quiescent Current

6mA

Control Features

Current Limit, Enable

Accuracy

2 %

Output Voltage 1

15V

Voltage - Output (Min/Fixed)

15V

Number of Regulators

1

Protection Features

Over Current, Over Temperature

Voltage Dropout (Max)

2.5V @ 500mA

PSRR

60dB (120Hz)

Dropout Voltage

2V

Dropout Voltage1-Nom

2V

Voltage Tolerance-Max

4%

Input Voltage Absolute-Max

35V

Radiation Hardening

Yes

RoHS Status

Non-RoHS Compliant

Lead Free

Exempt
