Factory Lead Time

10 Weeks

Lifecycle Status

IN PRODUCTION (Last Updated: 3 weeks ago)

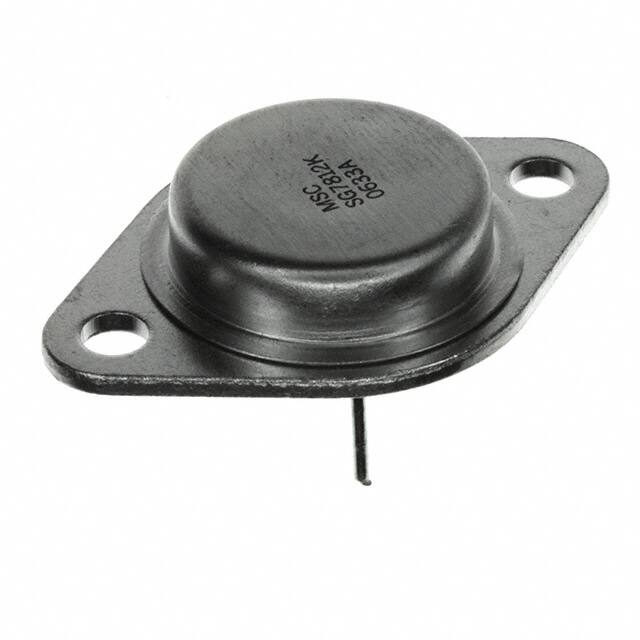

Package / Case

TO-204AA, TO-3

Mounting Type

Through Hole

Mount

Through Hole

Series

Military, MIL-STD-883

Published

1999

Packaging

Bulk

Operating Temperature

-55°C~125°C TA

JESD-609 Code

e0

Pbfree Code

no

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Terminal Position

BOTTOM

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

SG7812

Pin Count

2

JESD-30 Code

O-MBFM-P2

Current - Supply (Max)

7mA

Number of Outputs

1

Qualification Status

Not Qualified

Voltage - Input (Max)

35V

Output Voltage

12V

Output Type

Fixed

Max Output Current

1.5A

Output Configuration

Positive

Quiescent Current

6mA

Control Features

Current Limit, Enable

Accuracy

2 %

Output Voltage 1

12V

Voltage - Output (Min/Fixed)

12V

Number of Regulators

1

Protection Features

Over Current, Over Temperature

Voltage Dropout (Max)

2.5V @ 500mA

PSRR

61dB (120Hz)

Dropout Voltage1-Nom

2V

Input Voltage Absolute-Max

35V

Output Voltage Accuracy

2 %

Radiation Hardening

Yes

RoHS Status

Non-RoHS Compliant

Lead Free

Exempt
