Factory Lead Time

10 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

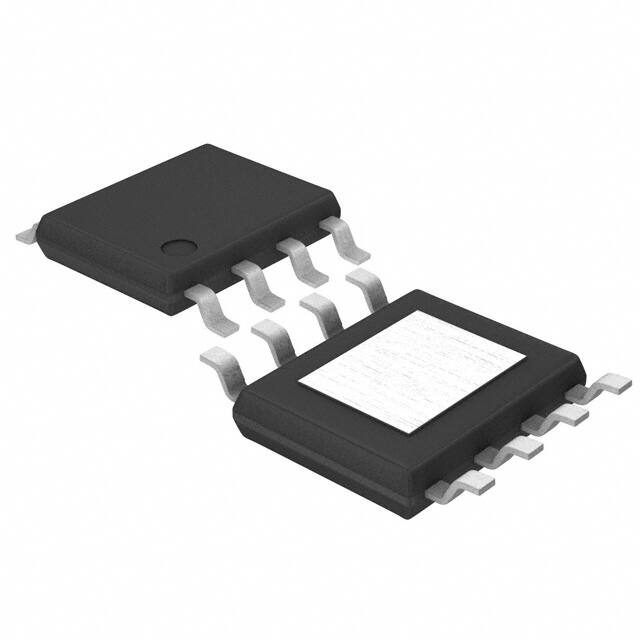

Package / Case

8-SOIC (0.154, 3.90mm Width) Exposed Pad

Number of Pins

8

Usage Level

Automotive grade

Operating Temperature

-40°C~105°C

Packaging

Tape & Reel (TR)

Series

Automotive, AEC-Q100

Published

2012

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Packing Method

TAPE AND REEL

Max Power Dissipation

2.11W

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Current - Supply (Max)

900μA

Number of Outputs

1

Qualification Status

Not Qualified

Voltage - Input (Max)

14V

Output Voltage

13V

Output Type

Adjustable

Max Output Current

300mA

Output Configuration

Positive

Control Features

Enable

Max Output Voltage

13V

Number of Regulators

1

Min Input Voltage

4.5V

Protection Features

Over Current, Over Temperature

Current - Quiescent (Iq)

0.6mA

Voltage Dropout (Max)

1.2V @ 300mA

Reference Voltage

800mV

Dropout Voltage

600mV

Dropout Voltage1-Nom

0.6V

Min Output Voltage

1.5V

Input Bias Current

600μA

Load Regulation-Max(%)

5%

Length

4.9mm

Width

3.9mm

REACH SVHC

Unknown

RoHS Status

ROHS3 Compliant
