Factory Lead Time

10 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

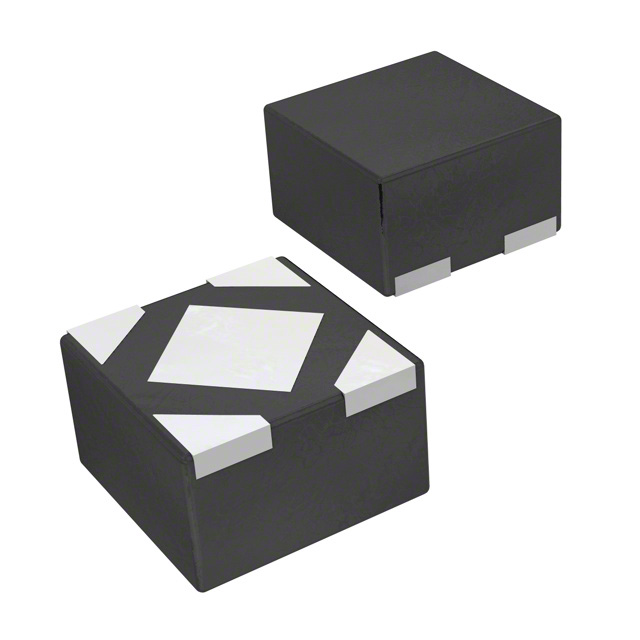

Package / Case

4-UDFN Exposed Pad

Number of Pins

4

Usage Level

Industrial grade

Operating Temperature

-40°C~85°C

Packaging

Tape & Reel (TR)

Published

2015

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Terminal Position

QUAD

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

0.65mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

MCP1711

Current - Supply (Max)

1.8μA

Voltage - Input (Max)

6V

Output Voltage

3V

Output Type

Fixed

Output Configuration

Positive

Control Features

Enable

Output Voltage 1

3V

Number of Regulators

1

Min Input Voltage

1.4V

Current - Quiescent (Iq)

1.27μA

Voltage Dropout (Max)

0.67V @ 150mA

Dropout Voltage

500mV

Min Current Limit

150mA

Nominal Output Voltage

3V

Height Seated (Max)

0.6mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
