Factory Lead Time

6 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

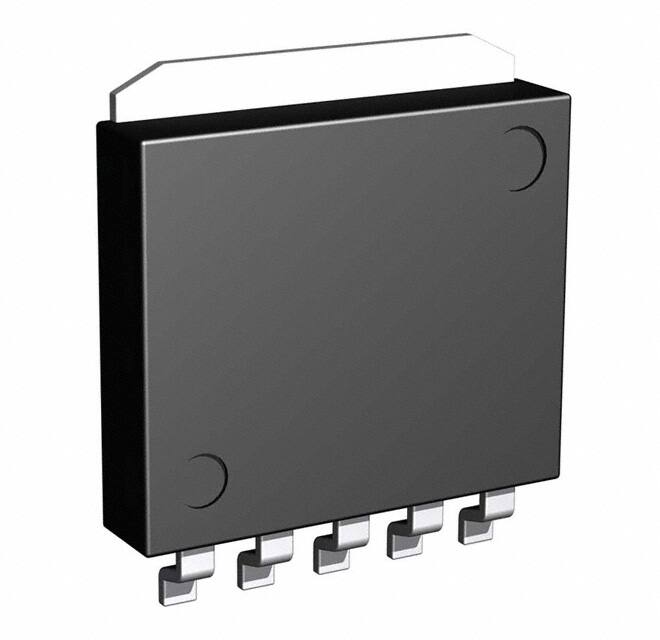

TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Number of Pins

5

Operating Temperature

-40°C~125°C

Packaging

Tape & Reel (TR)

Published

2013

JESD-609 Code

e2

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Terminal Finish

TIN COPPER

Packing Method

TAPE&REEL (RIGHT)

Max Power Dissipation

2.3W

Terminal Position

SINGLE

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

10

Pin Count

5

Number of Outputs

1

Voltage - Input (Max)

25V

Output Voltage

9V

Output Type

Fixed

Max Output Current

2A

Output Configuration

Positive

Control Features

Enable

Accuracy

1 %

Output Voltage 1

9V

Number of Regulators

1

Min Input Voltage

3V

Protection Features

Over Current, Over Temperature, Over Voltage

Current - Quiescent (Iq)

120μA

Voltage Dropout (Max)

0.7V @ 2A

PSRR

55dB (120Hz)

Dropout Voltage

450mV

Dropout Voltage1-Nom

0.45V

Voltage Tolerance-Max

1%

Input Voltage Absolute-Max

36V

Width

8mm

REACH SVHC

Unknown

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
