Lifecycle Status

LIFETIME (Last Updated: 2 weeks ago)

Factory Lead Time

12 Weeks

Mount

Through Hole

Mounting Type

Through Hole

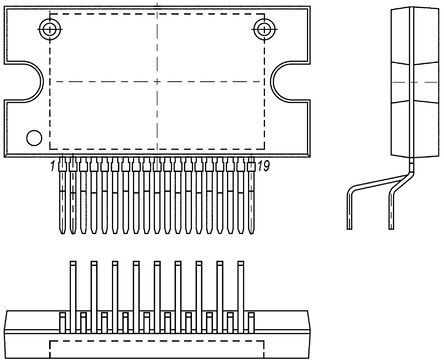

Package / Case

19-SSIP Formed Leads

Number of Pins

19

SwitchingFrequency

45kHz

Operating Temperature

0°C~105°C TC

Packaging

Tube

Published

2008

JESD-609 Code

e2

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

19

Terminal Finish

Tin/Nickel (Sn/Ni)

Applications

General Purpose

HTS Code

8542.39.00.01

Voltage - Supply

4.75V~5.25V

Terminal Position

ZIG-ZAG

Supply Voltage

5V

Terminal Pitch

1mm

Function

Driver - Fully Integrated, Control and Power Stage

Supply Voltage-Max (Vsup)

5.25V

Power Supplies

524V

Supply Voltage-Min (Vsup)

4.75V

Interface

Parallel

Nominal Supply Current

9mA

Output Configuration

Half Bridge (2)

Power Dissipation

10.2W

Logic Function

AND

Collector Emitter Voltage (VCEO)

42V

Max Collector Current

3A

Voltage - Load

10V~42V

Motor Type

Stepper

Motor Type - Stepper

Unipolar

Step Resolution

1, 1/2

Height

14.4mm

Length

29.2mm

Width

4.5mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
