Factory Lead Time

8 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

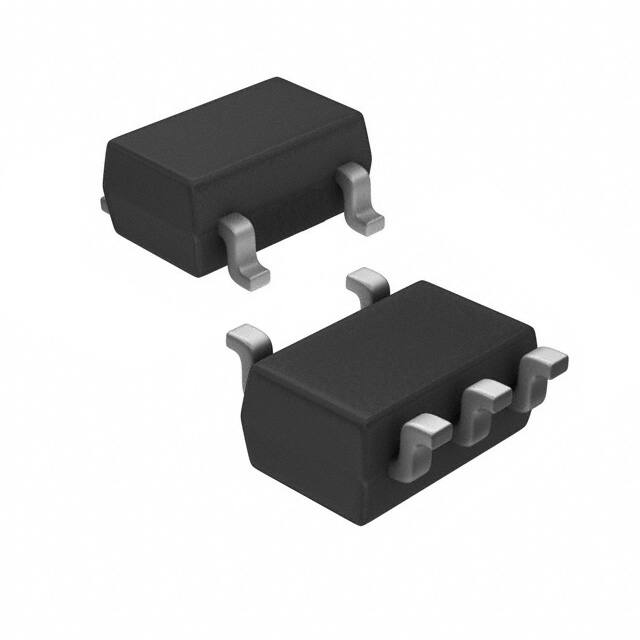

Package / Case

SC-74A, SOT-753

Operating Temperature

-40°C~85°C

Packaging

Cut Tape (CT)

Published

2005

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

0.939mm

Reach Compliance Code

unknown

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PDSO-G5

Voltage - Input (Max)

6V

Output Voltage

2.8V

Output Type

Fixed

Output Configuration

Positive

Control Features

Enable

Output Voltage 1

2.8V

Input Voltage (Min)

3.8V

Number of Regulators

1

Protection Features

Over Current

Current - Quiescent (Iq)

65μA

Voltage Dropout (Max)

0.42V @ 400mA Typ

PSRR

75dB (1kHz ~ 10kHz)

Dropout Voltage

420mV

Min Current Limit

500mA

Length

2.895mm

RoHS Status

ROHS3 Compliant
