Factory Lead Time

10 Weeks

Mount

Through Hole

Mounting Type

Through Hole

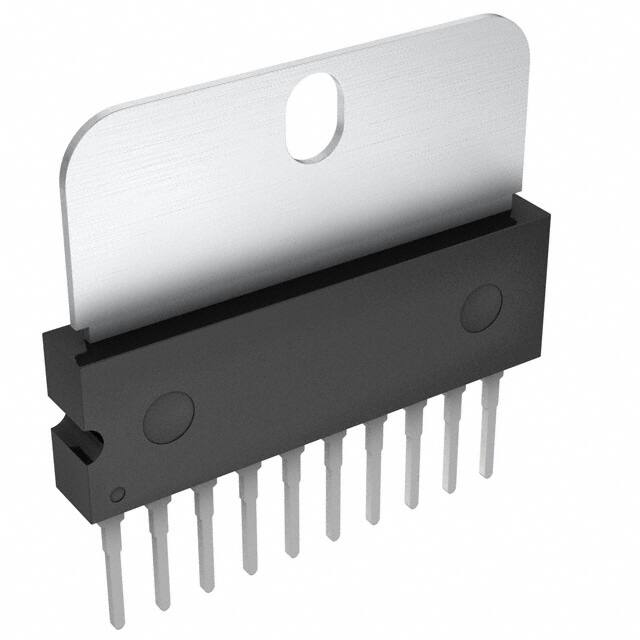

Package / Case

10-SIP Exposed Tab

Number of Pins

10

Operating Temperature

-25°C~125°C TJ

Packaging

Tube

Published

2008

JESD-609 Code

e2

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

10

ECCN Code

EAR99

Terminal Finish

TIN COPPER

Applications

General Purpose

HTS Code

8542.39.00.01

Voltage - Supply

8V~18V

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

260

Supply Voltage

12V

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

10

Base Part Number

BA62*

Function

Driver - Fully Integrated, Control and Power Stage

Operating Supply Voltage

18V

Power Supplies

12V

Supply Voltage-Min (Vsup)

8V

Interface

On/Off

Analog IC - Other Type

BRUSH DC MOTOR CONTROLLER

Nominal Supply Current

16mA

Output Configuration

Half Bridge (2)

Logic Function

AND

Supply Current-Max (Isup)

60mA

Voltage - Load

8V~18V

Motor Type - AC, DC

Brushed DC

Length

26.5mm

Height Seated (Max)

3.8mm

Width

8.4mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
